√ Meets ISO16750-2 surge specification(varied by test condition)
√ Low leakage current
√ High surge capability
√ AEC-Q101 qualified
√ Meets MSL 1, per J-STD-020, LF maximum peak of 245℃
√ Compliant to RoHS directive 2011/65/EU and in accordance to WEEE 2002/96/EC
√ Junction passivation optimized design passivated anisotropic rectifier technology
√ TJ=175℃ capability suitable for high reliability and automotive requirement

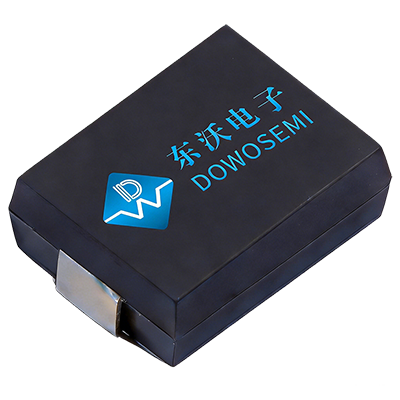

| 型号 | 图片 | VBR.MIN(V) | VBR.MAX(V) | IT(mA) | IR(μA) | VRWM(V) | IPP(A) | VC(V) | PPP (W) | Package | 下载 |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
15.6 |
17.2 |
5 |
5 |
14 |
284 |
23.2 |
6600 |
4032 |
|
|
|
|
16.7 |
18.5 |
5 |
5 |
15 |
270 |
24.4 |
6600 |
4032 |
|
|
|
|
17.8 |
19.7 |
5 |
5 |
16 |
253 |
26.0 |
6600 |
4032 |
|
|
|
|
18.9 |
20.9 |
5 |
5 |
17 |
239 |
27.6 |
6600 |
4032 |
|
|
|
|
20.0 |
22.1 |
5 |
5 |
18 |
226 |
29.2 |
6600 |
4032 |
|
|
|
|
22.2 |
24.5 |
5 |
5 |
20 |
204 |
32.4 |
6600 |
4032 |
|
|
|
|
24.4 |
26.9 |
5 |
5 |
22 |
186 |
35.5 |
6600 |
4032 |
|
|
|
|
26.7 |
29.5 |
5 |
5 |
24 |
170 |
38.9 |
6600 |
4032 |
|
|
|
|
28.9 |
31.9 |
5 |
5 |
26 |
157 |
42.1 |
6600 |
4032 |
|
|
|
|
30.0 |
33.2 |
5 |
5 |
27 |
150 |
43.8 |
6600 |
4032 |
|
|
|
|
31.1 |
34.4 |
5 |
5 |
28 |
145 |
45.4 |
6600 |
4032 |
|
|
|
|
33.3 |
36.8 |
5 |
5 |
30 |
136 |
48.4 |
6600 |
4032 |
|
