12V系统车灯浪涌防护方案设计

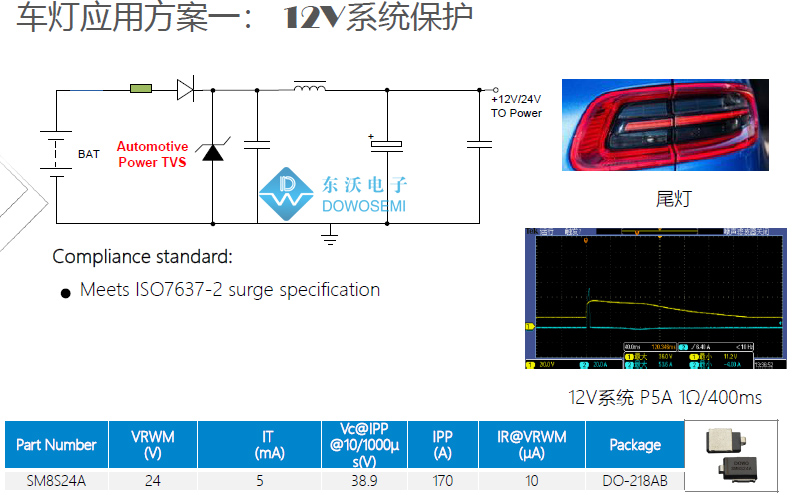

12V系统车灯浪涌防护方案设计图：

从图中的防护方案可以看出，电路中选用了一颗TVS二极管SM8S24A，反应速度快、残压低、共差模防护，满足ISO7637-2 surge specification。SM8S24A是一种高效型的电路保护器件，常用于汽车电子产品之中。汽车级TVS二极管SM8S24A特性：
• Optimized glass passivated chip
• Case: DO-218AB
• TJ = 175 °C capability suitable for high reliability and automotive requirement
• 6600 W peak pulse power capability with a 10/1000 μs waveform, repetitive rate (duty cycle):0.01 %
• Meet ISO 7637-2 5a/5b and ISO 16750 load dump test (varied by test condition)
• AEC-Q101 qualified
• Low leakage current
• Low forward voltage drop
• Very fast response time
• RoHS compliant
• Excellent clamping capability
