1N4728A-Z1330A Features
• Glass passivated chip
• Low leakage
• Built-in strain relief
• Low inductance
• High peak reverse power dissipation
• Lead (Pb)-free component
• For use in stabilizing and clipping circuits with high power rating
1N4728A-Z1330A Mechanical Data

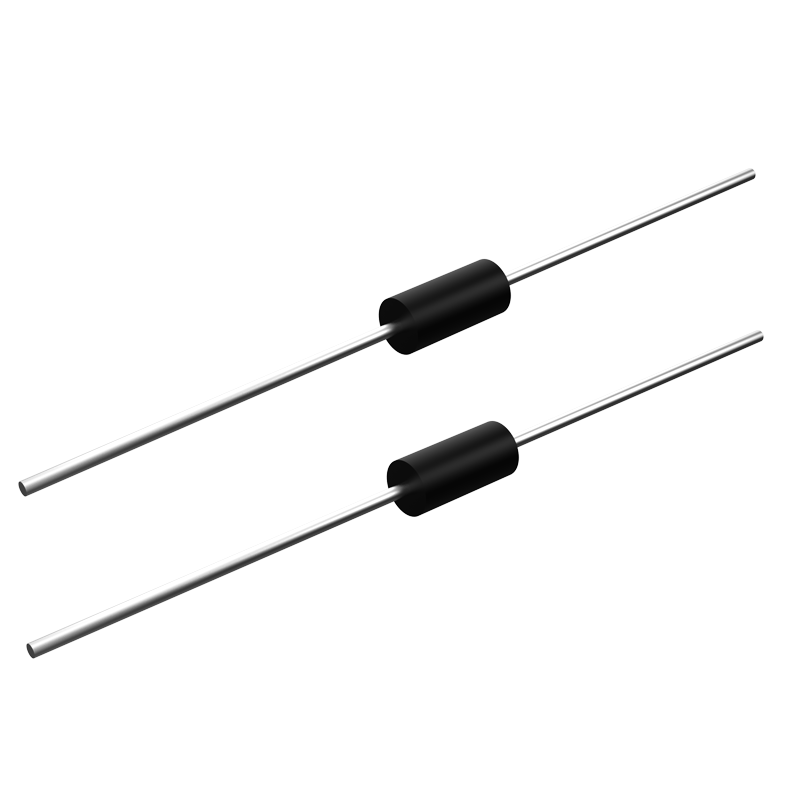

• Case: Molded plastic
• Epoxy: UL 94V-0 rate flame retardant
• Lead: Axial leads,Solderable per MILSTD-202, method 208 guranteed
• Polarity: Color band denotes cathode end
• Mounting position: Any
| 型号 | 图片 | 封装 | VZ @ IZT(V) | IZT(mA) | ZZT @ IZT(Ω) | ZZK @ IZK(Ω) | IZK(mA) | IR @ VR(μA) | IZM(mA) | IRM(mApk) | 下载 |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
DO-41 |
3.3 |
76.0 |
10 |
400 |
1.0 |
100 |
274 |
1370 |
|
|
|
|
DO-41 |
3.6 |
69.0 |
10 |
400 |
1.00 |
100 |
251 |
1255 |
|
|
|
|
DO-41 |
3.9 |
64.0 |
9.0 |
400 |
1.00 |
50 |
232 |
1160 |
|
|
|
|
DO-41 |
4.3 |
58.0 |
9.0 |
400 |
1.00 |
10 |
210 |
1050 |
|
|
|
|
DO-41 |
4.7 |
53.0 |
8.0 |
500 |
1.00 |
10 |
192 |
960 |
|
|
|
|
DO-41 |
5.1 |
49.0 |
7.0 |
550 |
1.00 |
10 |
177 |
885 |
|
|
|
|
DO-41 |
5.6 |
45.0 |
5.0 |
600 |
1.00 |
10 |
161 |
805 |
|
|
|
|
DO-41 |
6.8 |
37.0 |
3.5 |
700 |
1.00 |
5.0 |
133 |
660 |
|
|
|
|
DO-41 |
7.5 |
34.0 |
4.0 |
700 |
0.50 |
5.0 |
121 |
605 |
|
|
|
|
DO-41 |
8.2 |
31.0 |
4.5 |
700 |
0.50 |
5.0 |
110 |
550 |
|
|
|
|
DO-41 |
9.1 |
28.0 |
5.0 |
700 |
0.50 |
0.5 |
100 |
500 |
|
|
|
|
DO-41 |
10.0 |
25.0 |
7.0 |
700 |
0.25 |
0.5 |
91 |
454 |
|
|
|
|
DO-41 |
11.0 |
23.0 |
8.0 |
700 |
0.25 |
0.1 |
83 |
414 |
|
|
|
|
DO-41 |
11.0 |
23.0 |
8.0 |
700 |
0.25 |
0.1 |
83 |
414 |
|
|
|
|
DO-41 |
12.0 |
21.0 |
9.0 |
700 |
0.25 |
0.1 |
76 |
380 |
|
|
|
|
DO-41 |
13.0 |
19.0 |
10 |
700 |
0.25 |
0.1 |
69 |
344 |
|
|
|
|
DO-41 |
15.0 |
17.0 |
14 |
700 |
0.25 |
0.1 |
61 |
305 |
|
|
|
|
DO-41 |
16.0 |
15.5 |
16 |
700 |
0.25 |
0.1 |
57 |
285 |
|
|
|
|
DO-41 |
18.0 |
14.0 |
20 |
750 |
0.25 |
0.1 |
50 |
250 |
|
|
|
|
DO-41 |
20.0 |
12.5 |
22 |
750 |
0.25 |
0.1 |
45 |
225 |
|
|
|
|
DO-41 |
22.0 |
11.5 |
23 |
750 |
0.25 |
0.1 |
41 |
205 |
|
|
|
|
DO-41 |
24.0 |
10.5 |
25 |
750 |
0.25 |
0.1 |
38 |
190 |
|
|
|
|
DO-41 |
27.0 |
9.5 |
35 |
750 |
0.25 |
0.1 |
34 |
170 |
|
|
|
|
DO-41 |
30.0 |
8.5 |
40 |
1000 |
0.25 |
0.1 |
30 |
150 |
|
|
|
|
DO-41 |
33.0 |
7.5 |
45 |
1000 |
0.25 |
0.1 |
27 |
135 |
|
|
|
|
DO-41 |
36.0 |
7.0 |
50 |
1000 |
0.25 |
0.1 |
25 |
125 |
|
|
|
|
DO-41 |
39.0 |
6.5 |
60 |
1000 |
0.25 |
0.1 |
23 |
115 |
|
|
|
|
DO-41 |
43.0 |
6.0 |
70 |
1500 |
0.25 |
0.1 |
22 |
110 |
|
|
|
|
DO-41 |
47.0 |
5.5 |
80 |
1500 |
0.25 |
0.1 |
19 |
95 |
|
|
|
|
DO-41 |
51.0 |
5.0 |
95 |
1500 |
0.25 |
0.1 |
18 |
90 |
|
|
|
|
DO-41 |
56.0 |
4.5 |
110 |
2000 |
0.25 |
0.1 |
16 |
80 |
|
|
|
|
DO-41 |
62.0 |
4.0 |
125 |
2000 |
0.25 |
0.1 |
14 |
70 |
|
|
|
|
DO-41 |
68.0 |
3.7 |
150 |
2000 |
0.25 |
0.1 |
13 |
65 |
|
|
|
|
DO-41 |
75.0 |
3.3 |
175 |
2000 |
0.25 |
0.1 |
12 |
60 |
|
|
|
|
DO-41 |
82.0 |
3.0 |
200 |
3000 |
0.25 |
0.1 |
11 |
55 |
|
|
|
|
DO-41 |
91.0 |
2.8 |
250 |
3000 |
0.25 |
0.1 |
10 |
50 |
|
|
|
|
DO-41 |
100.0 |
2.5 |
350 |
3000 |
0.25 |
0.1 |
9.0 |
45 |
|
|
|
|
DO-41 |
110.0 |
2.3 |
450 |
4000 |
0.25 |
0.1 |
8.6 |
40 |
|
|
|
|
DO-41 |
120.0 |
2.0 |
550 |
4500 |
0.25 |
0.1 |
7.8 |
37 |
|
|
|
|
DO-41 |
130.0 |
1.9 |
700 |
5000 |
0.25 |
0.1 |
7.0 |
34 |
|
|
|
|
DO-41 |
150.0 |
1.7 |
1000 |
6000 |
0.25 |
0.1 |
6.4 |
30 |
|
|
|
|
DO-41 |
160.0 |
1.6 |
1100 |
6500 |
0.25 |
0.1 |
5.8 |
28 |
|
|
|
|
DO-41 |
180.0 |
1.4 |
1200 |
7000 |
0.25 |
0.1 |
5.2 |
25 |
|
|
|
|
DO-41 |
200.0 |
1.2 |
1900 |
9990 |
0.25 |
0.1 |
4.7 |
22 |
|
|
|
|
DO-41 |
220.0 |
1.0 |
1600 |
8000 |
0.25 |
0.1 |
4.0 |
20 |
|
|
|
|
DO-41 |
240.0 |
0.9 |
1800 |
8500 |
0.25 |
0.1 |
3.8 |
19 |
|
|
|
|
DO-41 |
250.0 |
0.9 |
2000 |
9000 |
0.25 |
0.1 |
3.6 |
18 |
|
|
|
|
DO-41 |
270.0 |
0.8 |
2100 |
9000 |
0.25 |
0.1 |
3.3 |
16 |
|
|
|
|
DO-41 |
300.0 |
0.8 |
2300 |
9500 |
0.25 |
0.1 |
3.0 |
15 |
|
|
|
|
DO-41 |
330.0 |
0.7 |
2500 |
9500 |
0.25 |
0.1 |
2.7 |
13 |
|
