產品特性
• 玻璃鈍化芯片
• 在10/1000μ波形重復率（占空比）：0.01%下，峰值脈沖功率可達200w
• 低漏電流
• 單、雙向單元
• 優良的鉗位能力
• 快速的響應時間
• 通過無鉛認證，符合ROHS
機械參數
• 方法：模制塑料
• 環氧樹脂：UL 94V-0阻燃劑
• 引線：可焊性按MIL-STD-750，方法2026可焊
• 極性：除雙極性外有色帶的壹端為陰極
• 安裝位置：任何

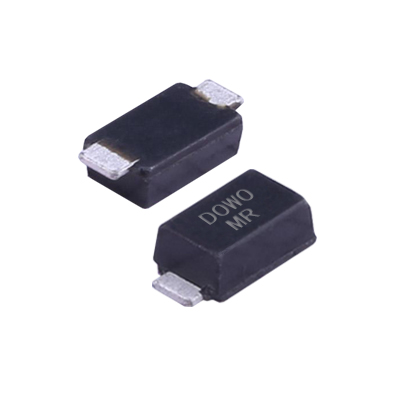

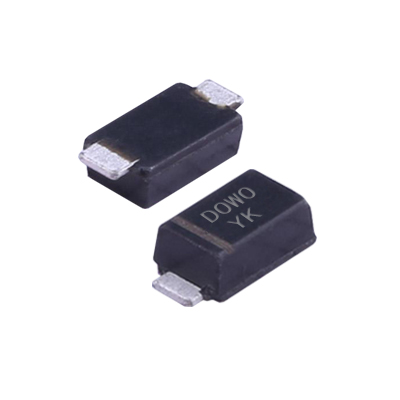

| 型號 | 圖片 | 封裝 | VBR.MIN(V) | VBR.MAX(V) | IT(mA) | IR(μA) | VRWM(V) | IPP(A) | VC(V) | 下載 |
|---|---|---|---|---|---|---|---|---|---|---|
|
SOD-123 |
5.20 |
6.00 |
10 |
600 |
3.3 |
25.00 |
8.0 |
|
|
|
SOD-123 |
6.40 |
7.00 |
10 |
400 |
5.0 |
21.74 |
9.2 |
|
|
|
SOD-123 |
6.67 |
7.37 |
10 |
400 |
6.0 |
19.42 |
10.3 |
|
|
|
SOD-123 |
7.22 |
7.98 |
10 |
250 |
6.5 |
17.86 |
11.2 |
|
|
|
SOD-123 |
7.78 |
8.60 |
10 |
100 |
7.0 |
16.67 |
12.0 |
|
|
|
SOD-123 |
8.33 |
9.21 |
1 |
50 |
7.5 |
15.50 |
12.9 |
|
|
|
SOD-123 |
8.89 |
9.83 |
1 |
25 |
8.0 |
14.71 |
13.6 |
|
|
|
SOD-123 |
9.44 |
10.40 |
1 |
10 |
8.5 |
13.89 |
14.4 |
|
|
|
SOD-123 |
10.00 |
11.10 |
1 |
5 |
9.0 |
12.99 |
15.4 |
|
|
|
SOD-123 |
11.10 |
12.30 |
1 |
2.5 |
10.0 |
11.76 |
17.0 |
|
|
|
SOD-123 |
12.20 |
13.50 |
1 |
2.5 |
11.0 |
10.99 |
18.2 |
|
|
|
SOD-123 |
13.30 |
14.70 |
1 |
2.5 |
12.0 |
10.05 |
19.9 |
|
|
|
SOD-123 |
14.40 |
15.90 |
1 |
1 |
13.0 |
9.30 |
21.5 |
|
|
|
SOD-123 |
15.60 |
17.20 |
1 |
1 |
14.0 |
8.62 |
23.2 |
|
|
|
SOD-123 |
16.70 |
18.50 |
1 |
1 |
15.0 |
8.20 |
24.4 |
|
|
|
SOD-123 |
17.80 |
19.70 |
1 |
1 |
16.0 |
7.69 |
26.0 |
|
|
|
SOD-123 |
18.90 |
20.90 |
1 |
1 |
17.0 |
7.25 |
27.6 |
|
|
|
SOD-123 |
20.00 |
22.10 |
1 |
1 |
18.0 |
6.85 |
29.2 |
|
|
|
SOD-123 |
21.10 |
23.30 |
1 |
1 |
19.0 |
6.54 |
30.6 |
|
|
|
SOD-123 |
22.20 |
24.50 |
1 |
1 |
20.0 |
6.17 |
32.4 |
|
|
|
SOD-123 |
24.40 |
26.90 |
1 |
1 |
22.0 |
5.63 |
35.5 |
|
|
|
SOD-123 |
26.70 |
29.50 |
1 |
1 |
24.0 |
5.14 |
38.9 |
|
|
|
SOD-123 |
28.90 |
31.90 |
1 |
1 |
26.0 |
4.75 |
42.1 |
|
|
|
SOD-123 |
31.10 |
34.40 |
1 |
1 |
28.0 |
4.41 |
45.4 |
|
|
|
SOD-123 |
33.30 |
36.80 |
1 |
1 |
30.0 |
4.13 |
48.4 |
|
|
|
SOD-123 |
36.70 |
40.60 |
1 |
1 |
33.0 |
3.75 |
53.3 |
|
|
|
SOD-123 |
40.00 |
44.20 |
1 |
1 |
36.0 |
3.44 |
58.1 |
|
|
|
SOD-123 |
44.40 |
49.10 |
1 |
1 |
40.0 |
3.10 |
64.5 |
|
|
|
SOD-123 |
47.80 |
52.80 |
1 |
1 |
43.0 |
2.88 |
69.4 |
|
|
|
SOD-123 |
50.00 |
55.30 |
1 |
1 |
45.0 |
2.75 |
72.7 |
|
|
|
SOD-123 |
53.30 |
58.90 |
1 |
1 |
48.0 |
2.58 |
77.4 |
|
|
|
SOD-123 |
56.70 |
62.70 |
1 |
1 |
51.0 |
2.43 |
82.4 |
|
|
|
SOD-123 |
60.00 |
66.30 |
1 |
1 |
54.0 |
2.30 |
87.1 |
|
|
|
SOD-123 |
64.40 |
71.20 |
1 |
1 |
58.0 |
2.14 |
93.6 |
|
|
|
SOD-123 |
66.70 |
73.70 |
1 |
1 |
60.0 |
2.07 |
96.8 |
|
|
|
SOD-123 |
71.10 |
78.60 |
1 |
1 |
64.0 |
1.94 |
103.0 |
|
|
|
SOD-123 |
77.80 |
86.00 |
1 |
1 |
70.0 |
1.77 |
113.0 |
|
|
|
SOD-123 |
83.30 |
92.10 |
1 |
1 |
75.0 |
1.65 |
121.0 |
|
|
|
SOD-123 |
86.70 |
95.80 |
1 |
1 |
78.0 |
1.59 |
126.0 |
|
|
|
SOD-123 |
88.80 |
97.60 |
1 |
1 |
80.0 |
1.55 |
129.0 |
|
|
|
SOD-123 |
94.40 |
104.00 |
1 |
1 |
85.0 |
1.46 |
137.0 |
|
|
|
SOD-123 |
100.00 |
111.00 |
1 |
1 |
90.0 |
1.37 |
146.0 |
|
|
|
SOD-123 |
111.00 |
123.00 |
1 |
1 |
100.0 |
1.23 |
162.0 |
|
|
|
SOD-123 |
122.00 |
135.00 |
1 |
1 |
110.0 |
1.13 |
177.0 |
|
|
|
SOD-123 |
133.00 |
147.00 |
1 |
1 |
120.0 |
1.04 |
193.0 |
|
|
|
SOD-123 |
144.00 |
159.00 |
1 |
1 |
130.0 |
0.96 |
209.0 |
|
|
|
SOD-123 |
155.00 |
171.00 |
1 |
1 |
140.0 |
0.89 |
224.0 |
|
|
|
SOD-123 |
167.00 |
185.00 |
1 |
1 |
150.0 |
0.82 |
243.0 |
|
|
|
SOD-123 |
178.00 |
197.00 |
1 |
1 |
160.0 |
0.77 |
259.0 |
|
|
|
SOD-123 |
189.00 |
209.00 |
1 |
1 |
170.0 |
0.73 |
275.0 |
|
|
|
SOD-123 |
200.00 |
220.00 |
1 |
1 |
180.0 |
0.68 |
292.0 |
|
|
|
SOD-123 |
211.00 |
232.00 |
1 |
1 |
190.0 |
0.65 |
308.0 |
|
|
|
SOD-123 |
224.00 |
247.00 |
1 |
1 |
200.0 |
0.62 |
324.0 |
|
|
|
SOD-123 |
246.00 |
272.00 |
1 |
1 |
220.0 |
0.56 |
356.0 |
|
|
|
SOD-123 |
279.00 |
309.00 |
1 |
1 |
250 |
0.50 |
405.0 |
|
|
|
SOD-123 |
335.00 |
371.00 |
1 |
1 |
300.0 |
0.41 |
486.0 |
|
|
|
SOD-123 |
391.00 |
432.00 |
1 |
1 |
350.0 |
0.36 |
567.0 |
|
