Location:Home>Products>GDT>SMD GDT>Φ8.3x8.3x6mm

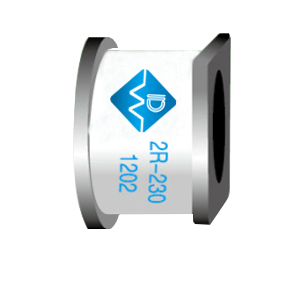

Φ8.3x8.3x6mm

Product Details

Part Number Picture Size Nominal DC Spark-over Voltage(V) Maximum impulse sparkover voltage(V) 8/20μs(KA) AC discharge current (A) Minimum insulation resistance(ΜΩ) C(pF) Download

2R75A-TP2

8.3×8.3×6mm

75±20%

600

10

10

1000

1.5

2R90A-TP2

8.3×8.3×6mm

90±20%

600

10

10

1000

1.5

2R230A-TP2

8.3×8.3×6mm

230±20%

600

10

10

1000

1.5

2R350A-TP2

8.3×8.3×6mm

350±20%

850

10

10

1000

1.5

2R420A-TP2

8.3×8.3×6mm

420±20%

950

10

10

1000

1.5

2R600A-TP2

8.3×8.3×6mm

600±20%

1100

10

10

1000

1.5

2R800A-TP2

8.3×8.3×6mm

800±20%

1400

10

10

1000

1.5
