Location:Home>Products>GDT>SMD GDT>Φ5x5x4.2mm

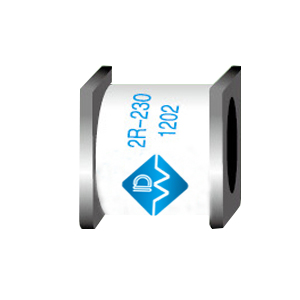

Φ5x5x4.2mm

Product Details

Part Number Picture Size Nominal DC Spark-over Voltage(V) Maximum impulse sparkover voltage(V) 8/20μs(KA) 10/700μs(A) Minimum insulation resistance(ΜΩ) C(pF) Download

2R70TP5

5×5×4.2mm

70±25%

550

3/5

6

1000

1

2R90TP5

5×5×4.2mm

90±20%

550

3/5

6

1000

1

2R200TP5

5×5×4.2mm

200±20%

600

3/5

6

1000

1

2R230TP5

5×5×4.2mm

230±20%

650

3/5

6

1000

1

2R350TP5

5×5×4.2mm

350±20%

900

3/5

6

1000

1

2R400TP5

5×5×4.2mm

400±20%

950

3/5

6

1000

1
