5.0SMDJ Series

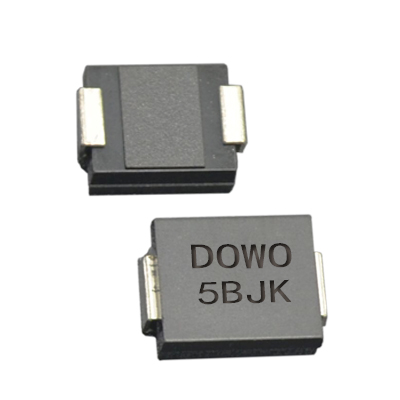

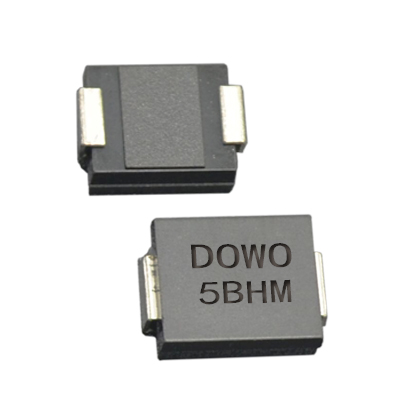

Encapsulation: SMC/DO-214AB
Ppp: 5000W
Vrwm: 11.0 V-440.0 V
Ipp: 7.01 A-248.76 A
Response Time: <1.0PS

Product Details

• Glass passivated chip

• 5000 W peak pulse power capability with a 10/1000 μs waveform, repetitive rate (duty cycle):0.01 %

• Low leakage
• Uni and Bidirectional unit
• Excellent clamping capability
• Very fast response time
• RoHS compliant

Part Number Picture Encapsulation VBR.MIN(V) VBR.MAX(V) IT(mA) IR(uA) VRWM(V) IPP(A) VC(V) Download

5.0SMDJ11A/5.0SMDJ11CA

SMC/DO-214AB

12.20

13.50

10

800

11.0

274.73

18.2

5.0SMDJ12A/5.0SMDJ12CA

SMC/DO-214AB

13.30

14.70

10

800

12.0

251.26

19.9

5.0SMDJ13A/5.0SMDJ13CA

SMC/DO-214AB

14.40

15.90

10

500

13.0

232.56

21.5

5.0SMDJ14A/5.0SMDJ14CA

SMA/DO-214AC

15.60

17.20

10

200

14.0

215.52

23.2

5.0SMDJ15A/5.0SMDJ15CA

SMC/DO-214AB

16.70

18.50

1

100

15.0

204.92

24.4

5.0SMDJ16A/5.0SMDJ16CA

SMC/DO-214AB

17.80

19.70

1

50

16.0

192.31

26.0

5.0SMDJ17A/5.0SMDJ17CA

SMC/DO-214AB

18.90

20.90

1

20

17.0

181.16

27.6

5.0SMDJ18A/5.0SMDJ18CA

SMC/DO-214AB

20.00

22.10

1

10

18.0

171.23

29.2

5.0SMDJ19A/5.0SMDJ19CA

SMC/DO-214AB

21.10

23.30

1

10

19.0

162.44

30.8

5.0SMDJ20A/5.0SMDJ20CA

SMC/DO-214AB

22.20

24.50

1

5

20.0

154.32

32.4

5.0SMDJ22A/5.0SMDJ22CA

SMC/DO-214AB

24.40

26.90

1

5

22.0

140.85

35.5

5.0SMDJ24A/5.0SMDJ24CA

SMC/DO-214AB

26.70

29.50

1

5

24.0

128.53

38.9

5.0SMDJ26A/5.0SMDJ26CA

SMC/DO-214AB

28.90

31.90

1

5

26.0

118.76

42.1

5.0SMDJ28A/5.0SMDJ28CA

SMC/DO-214AB

31.10

34.40

1

5

28.0

110.13

45.4

5.0SMDJ30A/5.0SMDJ30CA

SMC/DO-214AB

33.30

36.80

1

5

30.0

103.31

48.4

5.0SMDJ33A/5.0SMDJ33CA

SMC/DO-214AB

36.70

40.60

1

5

33.0

93.81

53.3

5.0SMDJ36A/5.0SMDJ36CA

SMC/DO-214AB

40.00

44.20

1

5

36.0

86.06

58.1

5.0SMDJ40A/5.0SMDJ40CA

SMA/DO-214AC

44.40

49.10

1

5

40.0

77.52

64.5

5.0SMDJ43A/5.0SMDJ43CA

SMC/DO-214AB

47.80

52.80

1

5

43.0

72.05

69.4

5.0SMDJ45A/5.0SMDJ45CA

SMC/DO-214AB

50.00

55.30

1

5

45.0

68.78

72.7

5.0SMDJ48A/5.0SMDJ48CA

SMC/DO-214AB

53.30

58.90

1

5

48.0

64.60

77.4

5.0SMDJ51A/5.0SMDJ51CA

SMC/DO-214AB

56.70

62.70

1

5

51.0

60.68

82.4

5.0SMDJ54A/5.0SMDJ54CA

SMC/DO-214AB

60.00

66.30

1

5

54.0

57.41

87.1

5.0SMDJ58A/5.0SMDJ58CA

SMC/DO-214AB

64.40

71.20

1

5

58.0

53.42

93.6

5.0SMDJ60A/5.0SMDJ60CA

SMC/DO-214AB

66.70

73.70

1

5

60.0

51.65

96.8

5.0SMDJ64A/5.0SMDJ64CA

SMC/DO-214AB

71.10

78.60

1

5

64.0

48.54

103.0

5.0SMDJ70A/5.0SMDJ70CA

SMC/DO-214AB

77.80

86.00

1

5

70.0

44.25

113.0

5.0SMDJ75A/5.0SMDJ75CA

SMC/DO-214AB

83.30

92.10

1

5

75.0

41.32

121.0

5.0SMDJ78A/5.0SMDJ78CA

SMC/DO-214AB

86.70

95.80

1

5

78.0

39.68

126.0

5.0SMDJ80A/5.0SMDJ80CA

SMC/DO-214AB

88.80

97.60

1

5

80.0

38.58

129.6

5.0SMDJ85A/5.0SMDJ85CA

SMC/DO-214AB

94.40

104.00

1

5

85.0

36.50

137.0

5.0SMDJ90A/5.0SMDJ90CA

SMC/DO-214AB

100.00

111.00

1

5

90.0

34.25

146.0

5.0SMDJ100A/5.0SMDJ100CA

SMC/DO-214AB

111.00

123.00

1

5

100.0

30.86

162.0

5.0SMDJ110A/5.0SMDJ110CA

SMC/DO-214AB

122.00

135.00

1

5

110.0

28.25

177.0

5.0SMDJ120A/5.0SMDJ120CA

SMC/DO-214AB

133.00

147.00

1

5

120.0

25.91

193.0

5.0SMDJ130A/5.0SMDJ130CA

SMC/DO-214AB

144.00

159.00

1

5

130.0

23.92

209.0

5.0SMDJ140A/5.0SMDJ140CA

SMC/DO-214AB

155.00

171.00

1

5

140.0

22.05

226.8

5.0SMDJ150A/5.0SMDJ150CA

SMC/DO-214AB

167.00

185.00

1

5

150.0

20.58

243.0

5.0SMDJ160A/5.0SMDJ160CA

SMC/DO-214AB

178.00

197.00

1

5

160.0

19.31

259.0

5.0SMDJ170A/5.0SMDJ170CA

SMC/DO-214AB

189.00

209.00

1

5

170.0

18.18

275.0

5.0SMDJ180A/5.0SMDJ180CA

SMC/DO-214AB

200.00

220.00

1

5

180.0

17.15

291.6

5.0SMDJ190A/5.0SMDJ190CA

SMC/DO-214AB

211.00

232.00

1

5

190.0

16.24

307.8

5.0SMDJ200A/5.0SMDJ200CA

SMC/DO-214AB

224.00

247.00

1

5

200.0

15.43

324.0

5.0SMDJ220A/5.0SMDJ220CA

SMC/DO-214AB

246.00

272.00

1

5

220.0

14.04

356.0

5.0SMDJ250A/5.0SMDJ250CA

SMC/DO-214AB

279.00

309.00

1

5

250.0

12.35

405.0

5.0SMDJ300A/5.0SMDJ300CA

SMC/DO-214AB

335.00

371.00

1

5

300.0

10.29

486.0

5.0SMDJ350A/5.0SMDJ350CA

SMC/DO-214AB

391.00

432.00

1

5

350.0

8.82

567.0

5.0SMDJ400A/5.0SMDJ400CA

SMC/DO-214AB

447.00

494.00

1

5

400.0

7.72

648.0

5.0SMDJ440A/5.0SMDJ440CA

SMC/DO-214AB

492.00

543.00

1

5

440.0

7.01

713.0
