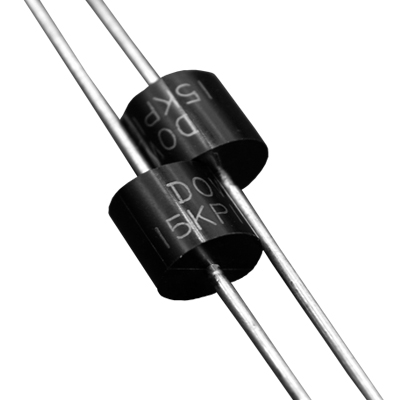

• Glass passivated chip
• 15000 W peak pulse power capability with a 10/1000 μs waveform, repetitive rate (duty
cycle):0.01 %
• Low leakage
• Uni and Bidirectional unit
• Excellent clamping capability
• Very fast response time
• RoHS compliant
| Part Number | Picture | Encapsulation | VBR.MIN(V) | VBR.MAX(V) | IT(mA) | IR(μA) | VRWM(V) | IPP(A) | VC(V) | Download |
|---|---|---|---|---|---|---|---|---|---|---|
|
R-6/P600 |
18.99 |
20.79 |
50 |
5000 |
17 |
515.40 |
29.3 |
|
|
|
R-6/P600 |
20.11 |
22.01 |
50 |
5000 |
18 |
488.70 |
30.9 |
|
|
|
R-6/P600 |
22.34 |
24.46 |
20 |
1500 |
20 |
440.20 |
34.3 |
|
|
|
R-6/P600 |
24.57 |
26.91 |
10 |
500 |
22 |
407.00 |
37.1 |
|
|
|
R-6/P600 |
26.81 |
29.35 |
5 |
150 |
24 |
371.00 |
40.7 |
|
|
|
R-6/P600 |
29.04 |
31.80 |
5 |
50 |
26 |
343.20 |
44.0 |
|
|
|
R-6/P600 |
31.28 |
34.24 |
5 |
25 |
28 |
317.90 |
47.5 |
|
|
|
R-6/P600 |
33.51 |
36.70 |
5 |
15 |
30 |
297.80 |
50.7 |
|
|
|
R-6/P600 |
36.90 |
40.40 |
5 |
2 |
33 |
276.10 |
54.7 |
|
|
|
R-6/P600 |
40.20 |
44.00 |
5 |
2 |
36 |
252.50 |
59.8 |
|
|
|
R-6/P600 |
44.70 |
48.90 |
5 |
2 |
40 |
229.50 |
65.8 |
|
|
|
R-6/P600 |
48.00 |
52.60 |
5 |
2 |
43 |
216.30 |
69.8 |
|
|
|
R-6/P600 |
50.30 |
55.00 |
5 |
2 |
45 |
207.40 |
72.8 |
|
|
|
R-6/P600 |
53.60 |
58.70 |
5 |
2 |
48 |
194.30 |
77.7 |
|
|
|
R-6/P600 |
57.00 |
62.40 |
5 |
2 |
51 |
182.10 |
82.9 |
|
|
|
R-6/P600 |
60.30 |
66.00 |
5 |
2 |
54 |
172.20 |
87.7 |
|
|
|
R-6/P600 |
64.80 |
70.90 |
5 |
2 |
58 |
161.00 |
93.8 |
|
|
|
R-6/P600 |
67.00 |
73.40 |
5 |
2 |
60 |
155.00 |
97.4 |
|
|
|
R-6/P600 |
71.50 |
78.30 |
5 |
2 |
64 |
144.90 |
104.2 |
|
|
|
R-6/P600 |
78.20 |
85.60 |
5 |
2 |
70 |
132.90 |
113.6 |
|
|
|
R-6/P600 |
83.80 |
91.70 |
5 |
2 |
75 |
123.80 |
122.0 |
|
|
|
R-6/P600 |
87.10 |
95.40 |
5 |
2 |
78 |
119.70 |
126.1 |
|
|
|
R-6/P600 |
94.90 |
104.00 |
5 |
2 |
85 |
109.70 |
137.6 |
|
|
|
R-6/P600 |
100.50 |
110.10 |
5 |
2 |
90 |
103.70 |
145.6 |
|
|
|
R-6/P600 |
111.70 |
122.30 |
5 |
2 |
100 |
93.60 |
161.3 |
|
|
|
R-6/P600 |
122.90 |
134.50 |
5 |
2 |
110 |
84.50 |
178.6 |
|
|
|
R-6/P600 |
134.00 |
146.80 |
5 |
2 |
120 |
78.50 |
192.3 |
|
|
|
R-6/P600 |
145.20 |
159.00 |
5 |
2 |
130 |
72.50 |
208.3 |
|
|
|
R-6/P600 |
167.60 |
183.50 |
5 |
2 |
150 |
62.40 |
241.9 |
|
|
|
R-6/P600 |
178.70 |
195.70 |
5 |
2 |
160 |
58.40 |
258.6 |
|
|
|
R-6/P600 |
189.90 |
207.90 |
5 |
2 |
170 |
55.40 |
272.7 |
|
|
|
R-6/P600 |
201.10 |
220.10 |
5 |
2 |
180 |
52.30 |
288.5 |
|
|
|
R-6/P600 |
223.40 |
244.60 |
5 |
2 |
200 |
47.30 |
319.1 |
|
|
|
R-6/P600 |
245.70 |
269.10 |
5 |
2 |
220 |
42.40 |
356.0 |
|
|
|
R-6/P600 |
268.10 |
293.50 |
5 |
2 |
240 |
39.30 |
384.6 |
|
|
|
R-6/P600 |
290.40 |
318.00 |
5 |
2 |
260 |
36.20 |
416.7 |
|
|
|
R-6/P600 |
312.80 |
342.40 |
5 |
2 |
280 |
33.20 |
454.5 |
|
