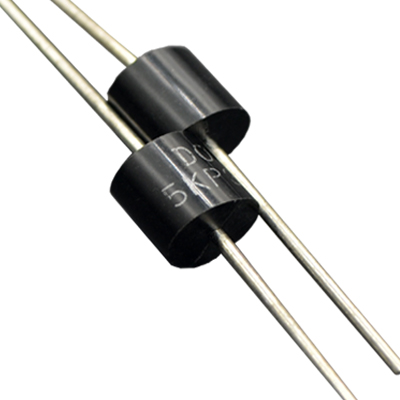

5KP Series

Encapsulation: R-6/P600
Ppp: 5000W
Vrwm: 5.0V-440.0 V
Ipp: 7.01 A-543.48 A
Response Time: <1.0PS

Product Details

• Glass passivated chip

• 5000 W peak pulse power capability with a 10/1000 μs waveform, repetitive rate (duty

cycle):0.01 %

• Uni and Bidirectional unit
• Low leakage
• Excellent clamping capability
• Very fast response time
• RoHS compliant

Part Number Picture Encapsulation VBR.MIN(V) VBR.MAX(V) IT(mA) IR(μA) VRWM(V) IPP(A) VC(V) Download

5KP5.0A/5KP5.0CA

R-6/P600

6.40

7.00

50

5000

5

543.48

9.2

5KP6.0A/5KP6.0CA

R-6/P600

6.67

7.37

50

5000

6

485.44

10.3

5KP6.5A/5KP6.5CA

R-6/P600

7.22

7.98

50

2000

6.5

446.43

11.2

5KP7.0A/5KP7.0CA

R-6/P600

7.78

8.60

50

1000

7

416.67

12.0

5KP7.5A/5KP7.5CA

R-6/P600

8.33

9.21

5

250

7.5

387.60

12.9

5KP8.0A/5KP8.0CA

R-6/P600

8.89

9.83

5

150

8

367.65

13.6

5KP8.5A/5KP8.5CA

R-6/P600

9.44

10.40

5

50

8.5

347.22

14.4

5KP9.0A/5KP9.0CA

R-6/P600

10.00

11.10

5

20

9

324.68

15.4

5KP10A/5KP10CA

R-6/P600

11.10

12.30

5

15

10

294.12

17.0

5KP11A/5KP11CA

R-6/P600

12.20

13.50

5

2

11

274.73

18.2

5KP12A/5KP12CA

R-6/P600

13.30

14.70

5

2

12

251.26

19.9

5KP13A/5KP13CA

R-6/P600

14.40

15.90

5

2

13

232.56

21.5

5KP14A/5KP14CA

R-6/P600

15.60

17.20

5

2

14

215.52

23.2

5KP15A/5KP15CA

R-6/P600

16.70

18.50

5

2

15

204.92

24.4

5KP16A/5KP16CA

R-6/P600

17.80

19.70

5

2

16

192.31

26.0

5KP17A/5KP17CA

R-6/P600

18.90

20.90

5

2

17

181.16

27.6

5KP18A/5KP18CA

R-6/P600

20.00

22.10

5

2

18

171.23

29.2

5KP19A/5KP19CA

R-6/P600

21.10

23.30

5

2

19

162.44

30.8

5KP20A/5KP20CA

R-6/P600

22.20

24.50

5

2

20

154.32

32.4

5KP22A/5KP22CA

R-6/P600

24.40

26.90

5

2

22

140.85

35.5

5KP24A/5KP24CA

R-6/P600

26.70

29.50

5

2

24

128.63

28.9

5KP26A/5KP26CA

R-6/P600

28.90

31.90

5

2

26

118.76

42.1

5KP28A/5KP28CA

R-6/P600

31.10

34.40

5

2

28

110.13

45.4

5KP30A/5KP30CA

R-6/P600

33.30

36.80

5

2

30

103.31

48.4

5KP33A/5KP33CA

R-6/P600

36.70

40.60

5

2

33

93.81

53.3

5KP36A/5KP36CA

R-6/P600

40.00

44.20

5

2

36

86.06

58.1

5KP40A/5KP40CA

R-6/P600

44.40

49.10

5

2

40

77.52

64.5

5KP43A/5KP43CA

R-6/P600

47.80

52.80

5

2

43

72.05

69.4

5KP45A/5KP45CA

R-6/P600

50.00

55.30

5

2

45

68.78

72.7

5KP48A/5KP48CA

R-6/P600

53.30

58.90

5

2

48

64.60

77.4

5KP51A/5KP51CA

R-6/P600

56.70

62.70

5

2

51

60.68

82.4

5KP54A/5KP54CA

R-6/P600

60.00

66.30

5

2

54

57.41

87.1

5KP58A/5KP58CA

R-6/P600

64.40

71.20

5

2

58

53.42

93.6

5KP60A/5KP60CA

R-6/P600

66.70

73.70

5

2

60

51.65

96.8

5KP64A/5KP64CA

R-6/P600

71.10

78.60

5

2

64

48.54

103.0

5KP70A/5KP70CA

R-6/P600

77.80

86.00

5

2

70

44.25

113.0

5KP75A/5KP75CA

R-6/P600

83.30

92.10

5

2

75

41.32

121.0

5KP78A/5KP78CA

R-6/P600

86.70

95.80

5

2

78

39.68

126.0

5KP80A/5KP80CA

R-6/P600

88.80

97.60

5

2

80

38.58

129.6

5KP85A/5KP85CA

R-6/P600

94.40

104.00

5

2

85

36.50

137.0

5KP90A/5KP90CA

R-6/P600

100.00

111.00

5

2

90

34.25

146.0

5KP100A/5KP100CA

R-6/P600

111.00

123.00

5

2

100

30.86

162.0

5KP110A/5KP110CA

R-6/P600

122.00

135.00

5

2

110

28.25

177.0

5KP120A/5KP120CA

R-6/P600

133.00

147.00

5

2

120

25.91

193.0

5KP130A/5KP130CA

R-6/P600

144.00

159.00

5

2

130

23.92

209.0

5KP140A/5KP140CA

R-6/P600

155.00

171.00

5

2

140

22.05

226.8

5KP150A/5KP150CA

R-6/P600

167.00

185.00

5

2

150

20.58

243.0

5KP160A/5KP160CA

R-6/P600

178.00

197.00

5

2

160

19.31

259.0

5KP170A/5KP170CA

R-6/P600

189.00

209.00

5

2

170

18.18

275.0

5KP180A/5KP180CA

R-6/P600

200.00

220.00

5

2

180

17.15

291.6

5KP190A/5KP190CA

R-6/P600

211.00

232.00

5

2

190

16.24

307.8

5KP200A/5KP200CA

R-6/P600

222.00

246.00

5

2

200

15.43

324.0

5KP210A/5KP210CA

R-6/P600

233.00

258.00

5

2

210

14.31

349.5

5KP220A/5KP220CA

R-6/P600

244.00

270.00

5

2

220

14.04

356.0

5KP250A/5KP250CA

R-6/P600

277.00

306.00

5

2

250

12.35

405.0

5KP300A/5KP300CA

R-6/P600

335.00

371.00

5

2

300

10.29

486.0

5KP350A/5KP350CA

R-6/P600

391.00

432.00

5

2

350

8.82

567.0

5KP400A/5KP400CA

R-6/P600

447.00

494.00

5

2

400

7.72

648

5KP440A/5KP440CA

R-6/P600

492.00

543.00

5

2

440

7.01

713.0
