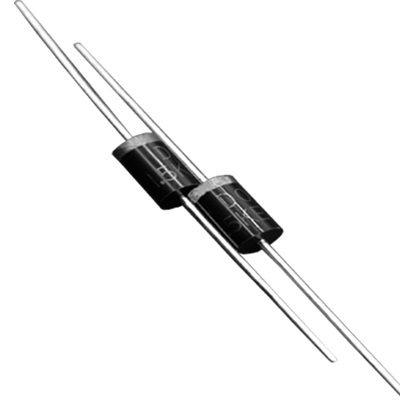

1.5KE Series

Encapsulation: DO-201
Ppp: 1500W
Vrwm: 6.8 V-600.0 VV
Ipp: 1.81 A-138.89 A
Response Time: <1.0PS

Product Details

• Glass passivated chip

• 1500 W peak pulse power capability with a 10/1000 μs waveform, repetitive rate (duty

cycle):0.01 %

• Low leakage
• Uni and Bidirectional unit
• Excellent clamping capability
• Very fast response time
• RoHS compliant

Part Number Picture Encapsulation VBR.MIN(V) VBR.MAX(V) IT(mA) IR(μA) VRWM(V) IPP(A) VC(V) Download

1.5KE6.8A/1.5KE6.8CA

DO-201

6.46

7.14

10

1000

5.8

142.86

10.5

1.5KE7.5A/1.5KE7.5CA

DO-201

7.13

7.88

10

500

6.4

132.74

11.3

1.5KE8.2A/1.5KE8.2CA

DO-201

7.79

8.61

10

200

7.0

123.97

12.1

1.5KE9.1A/1.5KE9.1CA

DO-201

8.65

8.56

1

50

7.8

111.94

13.4

1.5KE10A/1.5KE10CA

DO-201

9.50

10.50

1

10

8.6

103.45

14.5

1.5KE11A/1.5KE11CA

DO-201

10.45

11.55

1

5

9.4

96.15

15.6

1.5KE12A/1.5KE12CA

DO-201

11.40

12.60

1

5

10.2

89.82

16.7

1.5KE13A/1.5KE13CA

DO-201

12.35

13.65

1

1

11.1

82.42

18.2

1.5KE15A/1.5KE15CA

DO-201

14.25

15.75

1

1

12.8

70.75

21.2

1.5KE16A/1.5KE16CA

DO-201

15.20

16.80

1

1

13.6

66.67

22.5

1.5KE18A/1.5KE18CA

DO-201

17.10

18.90

1

1

15.3

59.52

25.2

1.5KE20A/1.5KE20CA

DO-201

19.00

21.00

1

1

17.1

54.15

27.7

1.5KE22A/1.5KE22CA

DO-201

20.90

23.10

1

1

18.8

49.02

30.6

1.5KE24A/1.5KE24CA

DO-201

22.80

25.20

1

1

20.5

45.18

33.2

1.5KE27A/1.5KE27CA

DO-201

25.65

28.35

1

1

23.1

40.00

37.5

1.5KE30A/1.5KE30CA

DO-201

28.50

31.50

1

1

25.6

36.23

41.4

1.5KE33A/1.5KE33CA

DO-201

31.35

34.65

1

1

28.2

32.82

45.7

1.5KE36A/1.5KE36CA

DO-201

34.20

37.80

1

1

30.8

30.06

49.9

1.5KE39A/1.5KE39CA

DO-201

37.05

40.95

1

1

33.3

27.83

53.9

1.5KE43A/1.5KE43CA

DO-201

40.85

45.15

1

1

36.8

25.30

59.3

1.5KE47A/1.5KE47CA

DO-201

44.65

49.35

1

1

40.2

23.15

64.8

1.5KE51A/1.5KE51CA

DO-201

48.45

53.55

1

1

43.6

21.40

70.1

1.5KE56A/1.5KE56CA

DO-201

53.20

58.80

1

1

47.8

19.48

77.0

1.5KE62A/1.5KE62CA

DO-201

58.90

65.10

1

1

53.0

17.65

85.0

1.5KE68A/1.5KE68CA

DO-201

64.60

71.40

1

1

58.1

16.30

92.0

1.5KE75A/1.5KE75CA

DO-201

71.25

78.75

1

1

64.1

14.56

103.0

1.5KE82A/1.5KE82CA

DO-201

77.90

86.10

1

1

70.1

13.27

113.0

1.5KE91A/1.5KE91CA

DO-201

86.45

95.55

1

1

77.8

12.00

125.0

1.5KE100A/1.5KE100CA

DO-201

95.00

105.00

1

1

85.5

10.95

137.0

1.5KE110A/1.5KE110CA

DO-201

104.50

115.50

1

1

94.0

9.87

152.0

1.5KE120A/1.5KE120CA

DO-201

114.00

126.00

1

1

102.0

9.09

165.0

1.5KE130A/1.5KE130CA

DO-201

123.50

136.50

1

1

111.0

8.38

179.0

1.5KE150A/1.5KE150CA

DO-201

142.50

157.50

1

1

128.0

7.25

207.0

1.5KE160A/1.5KE160CA

DO-201

152.00

168.00

1

1

136.0

6.85

219.0

1.5KE170A/1.5KE170CA

DO-201

161.50

178.50

1

1

145.0

6.41

234.0

1.5KE180A/1.5KE180CA

DO-201

171.00

189.00

1

1

154.0

6.10

246.0

1.5KE200A/1.5KE200CA

DO-201

190.00

210.00

1

1

171.0

5.47

274.0

1.5KE220A/1.5KE220CA

DO-201

209.00

231.00

1

1

185.0

4.57

328.0

1.5KE250A/1.5KE250CA

DO-201

237.50

262.50

1

1

214.0

4.36

344.0

1.5KE300A/1.5KE300CA

DO-201

285.00

315.00

1

1

256.0

3.62

414.0

1.5KE350A/1.5KE350CA

DO-201

332.50

367.50

1

1

299.3

3.11

482.0

1.5KE380A/1.5KE380CA

DO-201

361.00

399.00

1

1

324.9

2.86

524.4

1.5KE400A/1.5KE400CA

DO-201

380.00

420.00

1

1

342.0

2.72

548.0

1.5KE440A/1.5KE440CA

DO-201

418.00

462.00

1

1

376.2

2.47

602.0

1.5KE500A/1.5KE500CA

DO-201

475.00

525.00

1

1

427.5

2.17

690.0

1.5KE520A/1.5KE520CA

DO-201

494.00

546.00

1

1

444.6

2.09

717.6

1.5KE550A/1.5KE550CA

DO-201

522.50

577.50

1

1

470.3

1.98

759.0

1.5KE600A/1.5KE600CA

DO-201

570.00

630.00

1

1

513.0

1.81

828.0
