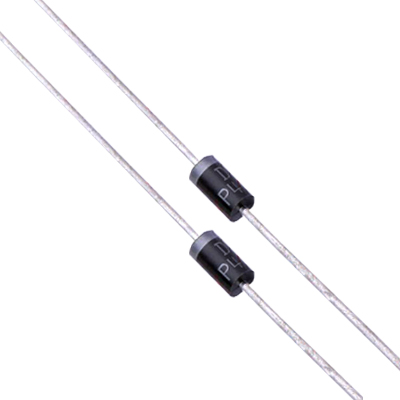

P4KE Series

Encapsulation: DO-41
Ppp: 400W
Vrwm: 6.8 V-600.0 VV
Ipp: 0.48 A-37.04 A
Response Time: <1.0PS

Product Details

• Glass passivated chip

• 400 W peak pulse power capability with a 10/1000 μs waveform, repetitive rate (duty cycle):0.01 %

• Low leakage
• Uni and Bidirectional unit
• Excellent clamping capability
• Very fast response time
• RoHS compliant

Part Number Picture Encapsulation VBR.MIN(V) VBR.MAX(V) IT(mA) IR(μA) VRWM(V) IPP(A) VC(V) Download

P4KE6.8A/P4KE6.8CA

DO-41

6.46

7.14

10

1000

5.8

38.10

10.5

P4KE7.5A/P4KE7.5CA

DO-41

7.13

7.88

10

500

6.4

35.40

11.3

P4KE8.2A/P4KE8.2CA

DO-41

7.79

8.61

10

200

7.0

33.06

12.1

P4KE9.1A/P4KE9.1CA

DO-41

8.65

9.56

1

50

7.8

29.85

13.4

P4KE10A/P4KE10CA

DO-41

9.50

10.50

1

10

8.6

27.59

14.5

P4KE11A/P4KE11CA

DO-41

10.45

11.55

1

5

9.4

25.64

15.6

P4KE12A/P4KE12CA

DO-41

11.40

12.60

1

5

10.2

23.95

16.7

P4KE13A/P4KE13CA

DO-41

12.35

13.65

1

1

11.1

21.98

18.2

P4KE15A/P4KE15CA

DO-41

14.25

15.75

1

1

12.8

18.87

21.2

P4KE16A/P4KE16CA

DO-41

15.20

16.80

1

1

13.6

17.78

22.5

P4KE18A/P4KE18CA

DO-41

17.10

18.90

1

1

15.3

15.87

25.2

P4KE20A/P4KE20CA

DO-41

19.00

21.00

1

1

17.1

14.44

27.7

P4KE22A/P4KE22CA

DO-41

20.90

23.10

1

1

18.8

13.07

30.6

P4KE24A/P4KE24CA

DO-41

22.80

25.20

1

1

20.5

12.05

33.2

P4KE27A/P4KE27CA

DO-41

25.65

28.35

1

1

23.1

10.67

37.5

P4KE30A/P4KE30CA

DO-41

28.50

31.50

1

1

25.6

9.66

41.4

P4KE33A/P4KE33CA

DO-41

31.35

34.65

1

1

28.2

8.75

45.7

P4KE36A/P4KE36CA

DO-41

34.20

37.80

1

1

30.8

8.02

49.9

P4KE39A/P4KE39CA

DO-41

37.05

40.95

1

1

33.3

7.42

53.9

P4KE43A/P4KE43CA

DO-41

40.85

45.15

1

1

36.8

6.75

59.3

P4KE47A/P4KE47CA

DO-41

44.65

49.35

1

1

40.2

6.17

64.8

P4KE51A/P4KE51CA

DO-41

48.45

53.55

1

1

43.6

5.71

70.1

P4KE56A/P4KE56CA

DO-41

53.20

58.80

1

1

47.8

5.19

77.0

P4KE62A/P4KE62CA

DO-41

58.90

65.10

1

1

53.0

4.71

85.0

P4KE68A/P4KE68CA

DO-41

64.60

71.40

1

1

58.1

4.35

92.0

P4KE75A/P4KE75CA

DO-41

71.25

78.75

1

1

64.1

3.88

103.0

P4KE82A/P4KE82CA

DO-41

77.90

86.10

1

1

70.1

3.54

113.0

P4KE91A/P4KE91CA

DO-41

86.45

95.55

1

1

77.8

3.20

125.0

P4KE100A/P4KE100CA

DO-41

95.00

105.00

1

1

85.5

2.92

137.0

P4KE110A/P4KE110CA

DO-41

104.50

115.50

1

1

94.0

2.63

152.0

P4KE120A/P4KE120CA

DO-41

114.00

126.00

1

1

102.0

2.42

165.0

P4KE130A/P4KE130CA

DO-41

123.50

136.50

1

1

111.0

2.23

179.0

P4KE150A/P4KE150CA

DO-41

142.50

157.50

1

1

128.0

1.93

207.0

P4KE160A/P4KE160CA

DO-41

152.00

168.00

1

1

136.0

1.83

219.0

P4KE170A/P4KE170CA

DO-41

161.50

178.50

1

1

145.0

1.71

234.0

P4KE180A/P4KE180CA

DO-41

171.00

189.00

1

1

154.0

1.63

246.0

P4KE200A/P4KE200CA

DO-41

190.00

210.00

1

1

171.0

1.46

274.0

P4KE220A/P4KE220CA

DO-41

209.00

231.00

1

1

185.0

1.22

328.0

P4KE250A/P4KE250CA

DO-41

237.50

262.50

1

1

214.0

1.16

344.0

P4KE300A/P4KE300CA

DO-41

285.00

315.00

1

1

256.0

0.97

414.0

P4KE350A/P4KE350CA

DO-41

332.50

367.50

1

1

299.3

0.83

482.0

P4KE380A/P4KE380CA

DO-41

361.00

399.00

1

1

324.9

0.76

524.4

P4KE400A/P4KE400CA

DO-41

380.00

420.00

1

1

342.0

0.72

552.0

P4KE440A/P4KE440CA

DO-41

418.00

462.00

1

1

376.2

0.66

607.2

P4KE500A/P4KE500CA

DO-41

475.00

525.00

1

1

427.5

0.58

690.0

P4KE520A/P4KE520CA

DO-41

494.00

546.00

1

1

444.6

0.56

717.6

P4KE550A/P4KE550CA

DO-41

522.50

577.50

1

1

470.3

0.53

759.0

P4KE600A/P4KE600CA

DO-41

570.00

630.00

1

1

513.0

0.48

828.0
