SMDJ Series

Encapsulation: SMC/DO-214AB
Ppp: 3000W
Vrwm: 5.0 V-440.0 V
Ipp: 4.21 A-312.50 A
Response Time: <1.0PS

Product Details

• Glass passivated chip

• 3000 W peak pulse power capability with a 10/1000 μs waveform, repetitive rate (duty

cycle):0.01 %

• Uni and Bidirectional unit
• Low leakage
• Excellent clamping capability
• Very fast response time
• RoHS compliant

Part Number Picture Encapsulation VBR.MIN(V) VBR.MAX(V) IT(mA) IR(μA) VRWM(V) IPP(A) VC(V) Download

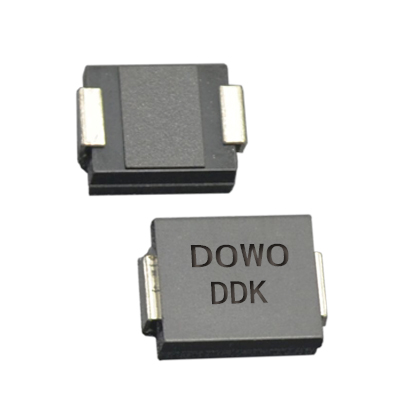

SMDJ5.0A/SMDJ5.0CA

SMC/DO-214AB

6.40

7.00

10

800

5.0

326.09

9.2

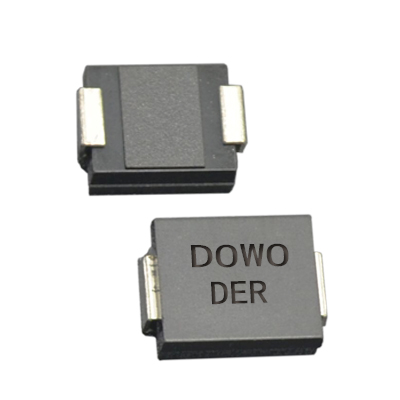

SMDJ6.0A/SMDJ6.0CA

SMC/DO-214AB

6.67

7.37

10

800

6.0

291.26

10.3

SMDJ6.5A/SMDJ6.5CA

SMC/DO-214AB

7.22

7.98

10

500

6.5

267.86

11.2

SMDJ7.0A/SMDJ7.0CA

SMC/DO-214AB

7.78

8.60

10

200

7.0

250.00

12.0

SMDJ7.5A/SMDJ7.5CA

SMC/DO-214AB

8.33

9.21

1

100

7.5

232.56

12.9

SMDJ8.0A/SMDJ8.0CA

SMC/DO-214AB

8.89

9.83

1

50

8.0

220.59

13.6

SMDJ8.5A/SMDJ8.5CA

SMC/DO-214AB

9.44

10.40

1

20

8.5

208.33

14.4

SMDJ9.0A/SMDJ9.0CA

SMC/DO-214AB

10.00

11.10

1

10

9.0

194.81

15.4

SMDJ10A/SMDJ10CA

SMC/DO-214AB

11.10

12.30

1

5

10.0

176.47

17.0

SMDJ11A/SMDJ11CA

SMC/DO-214AB

12.20

13.50

1

2

11.0

164.84

18.2

SMDJ12A/SMDJ12CA

SMC/DO-214AB

13.30

14.70

1

2

12.0

150.75

19.9

SMDJ13A/SMDJ13CA

SMC/DO-214AB

14.40

15.90

1

2

13.0

139.53

21.5

SMDJ14A/SMDJ14CA

SMC/DO-214AB

15.60

17.20

1

2

14.0

129.31

23.2

SMDJ15A/SMDJ15CA

SMC/DO-214AB

16.70

18.50

1

2

15.0

122.95

24.4

SMDJ16A/SMDJ16CA

SMC/DO-214AB

17.80

19.70

1

2

16.0

115.38

26.0

SMDJ17A/SMDJ17CA

SMC/DO-214AB

18.90

20.90

1

2

17.0

108.70

27.6

SMDJ18A/SMDJ18CA

SMC/DO-214AB

20.00

22.10

1

2

18.0

102.74

29.2

SMDJ19A/SMDJ19CA

SMC/DO-214AB

21.10

23.30

1

2

19.0

97.47

30.8

SMDJ20A/SMDJ20CA

SMC/DO-214AB

22.20

24.50

1

2

20.0

92.59

32.4

SMDJ22A/SMDJ22CA

SMC/DO-214AB

24.40

26.90

1

2

22.0

84.51

35.5

SMDJ24A/SMDJ24CA

SMC/DO-214AB

26.70

29.50

1

2

24.0

77.12

38.9

SMDJ26A/SMDJ26CA

SMC/DO-214AB

28.90

31.90

1

2

26.0

71.26

42.1

SMDJ28A/SMDJ28CA

SMC/DO-214AB

31.10

34.40

1

2

28.0

66.08

45.4

SMDJ30A/SMDJ30CA

SMC/DO-214AB

33.30

36.80

1

2

30.0

61.98

48.4

SMDJ33A/SMDJ33CA

SMC/DO-214AB

36.70

40.60

1

2

33.0

56.29

53.3

SMDJ36A/SMDJ36CA

SMC/DO-214AB

40.00

44.20

1

2

36.0

51.64

58.1

SMDJ40A/SMDJ40CA

SMC/DO-214AB

44.40

49.10

1

2

40.0

46.51

64.5

SMDJ43A/SMDJ43CA

SMC/DO-214AB

47.80

52.80

1

2

43.0

43.23

69.4

SMDJ45A/SMDJ45CA

SMC/DO-214AB

50.00

55.30

1

2

45.0

41.27

72.7

SMDJ48A/SMDJ48CA

SMC/DO-214AB

53.30

58.90

1

2

48.0

38.76

77.4

SMDJ51A/SMDJ51CA

SMC/DO-214AB

56.70

62.70

1

2

51.0

36.41

82.4

SMDJ54A/SMDJ54CA

SMC/DO-214AB

60.00

66.30

1

2

54.0

34.44

87.1

SMDJ58A/SMDJ58CA

SMC/DO-214AB

64.40

71.20

1

2

58.0

32.05

93.6

SMDJ60A/SMDJ60CA

SMC/DO-214AB

66.70

73.70

1

2

60.0

30.99

96.8

SMDJ64A/SMDJ64CA

SMC/DO-214AB

71.10

78.60

1

2

64.0

29.13

103.0

SMDJ70A/SMDJ70CA

SMC/DO-214AB

77.80

86.00

1

2

70.0

26.55

113.0

SMDJ75A/SMDJ75CA

SMC/DO-214AB

83.30

92.10

1

2

75.0

24.79

121.0

SMDJ78A/SMDJ78CA

SMC/DO-214AB

86.70

95.80

1

2

78.0

23.81

126.0

SMDJ80A/SMDJ80CA

SMC/DO-214AB

88.80

97.60

1

2

80.0

23.15

129.6

SMDJ85A/SMDJ85CA

SMC/DO-214AB

94.40

104.00

1

2

85.0

21.90

137.0

SMDJ90A/SMDJ90CA

SMC/DO-214AB

100.00

111.00

1

2

90.0

20.55

146.0

SMDJ100A/SMDJ100CA

SMC/DO-214AB

111.00

123.00

1

2

100.0

18.52

162.0

SMDJ110A/SMDJ110CA

SMC/DO-214AB

122.00

135.00

1

2

110.0

16.95

177.0

SMDJ120A/SMDJ120CA

SMC/DO-214AB

133.00

147.00

1

2

120.0

15.54

193.0

SMDJ130A/SMDJ130CA

SMC/DO-214AB

144.00

159.00

1

2

130.0

14.35

209.0

SMDJ140A/SMDJ140CA

SMC/DO-214AB

155.00

171.00

1

2

140.0

13.23

226.8

SMDJ150A/SMDJ150CA

SMC/DO-214AB

167.00

185.00

1

2

150.0

12.35

243.0

SMDJ160A/SMDJ160CA

SMC/DO-214AB

178.00

197.00

1

2

160.0

11.58

259.0

SMDJ170A/SMDJ170CA

SMC/DO-214AB

189.00

209.00

1

2

170.0

10.91

275.0

SMDJ180A/SMDJ180CA

SMC/DO-214AB

200.00

220.00

1

2

180.0

10.29

291.6

SMDJ190A/SMDJ190CA

SMC/DO-214AB

211.00

232.00

1

2

190.0

9.75

307.8

SMDJ200A/SMDJ200CA

SMC/DO-214AB

224.00

247.00

1

2

200.0

9.26

324.0

SMDJ220A/SMDJ220CA

SMC/DO-214AB

246.00

272.00

1

2

220.0

8.43

356.0

SMDJ250A/SMDJ250CA

SMC/DO-214AB

279.00

309.00

1

2

250.00

7.41

405.0

SMDJ300A/SMDJ300CA

SMC/DO-214AB

335.00

371.00

1

2

300

6.17

486.0

SMDJ350A/SMDJ350CA

SMC/DO-214AB

391.00

432.00

1

2

350.0

5.29

567.0

SMDJ400A/SMDJ400CA

SMC/DO-214AB

447.00

494.00

1

2

400.0

4.63

648.0

SMDJ440A/SMDJ440CA

SMC/DO-214AB

492.00

543.00

1

2

440.0

4.21

713.0
