SMCJ Series

Encapsulation: SMC/DO-214AB
Ppp: 1500W
Vrwm: 5.0 V-440.0 V
Ipp: 2.10 A-156.25 A
Response Time: <1.0PS

Product Details

• Glass passivated chip

• 1500 W peak pulse power capability with a 10/1000 μs waveform, repetitive rate (duty cycle):0.01 %

• Uni and Bidirectional unit
• Low leakage
• IEC-61000-4-2 ESD 15kV(Air), 8kV (Contact)

• Excellent clamping capability
• Very fast response time
• RoHS compliant

Part Number Picture Encapsulation VBR.MIN(V) VBR.MAX(V) IT(mA) IR(μA) VRWM(V) IPP(A) VC(V) Download

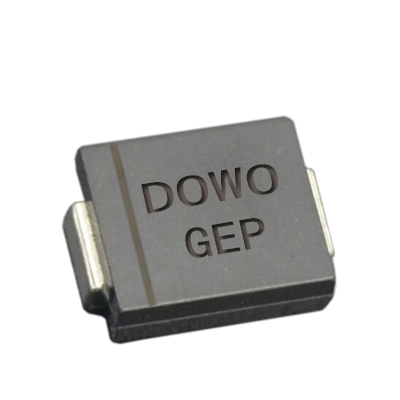

SMCJ5.0A/SMCJ5.0CA

SMC/DO-214AB

6.40

7.00

10

800

5.0

163.04

9.2

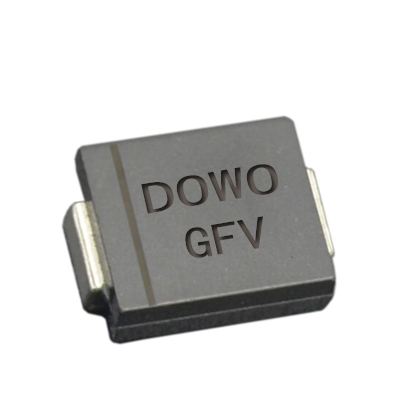

SMCJ6.0A/SMCJ6.0CA

SMC/DO-214AB

6.67

7.37

10

800

6.0

145.63

10.3

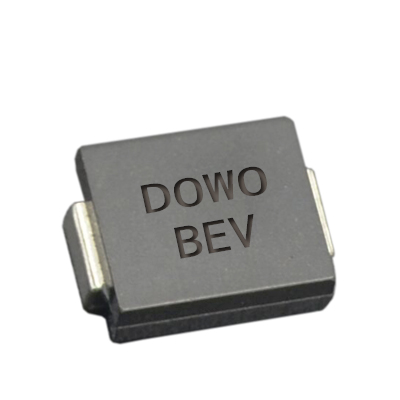

SMCJ6.5A/SMCJ6.5CA

SMC/D0-214AB

7.22

7.98

10

500

6.5

133.93

11.2

SMCJ7.0A/SMCJ7.0CA

SMC/DO-214AB

7.78

8.60

10

200

7.0

125.00

12.0

SMCJ7.5A/SMCJ7.5CA

SMC/DO-214AB

8.33

9.21

1

100

7.5

116.28

12.9

SMCJ8.0A/SMCJ8.0CA

SMC/DO-214AB

8.89

9.83

1

50

8.0

110.29

13.6

SMCJ8.5A/SMCJ8.5CA

SMC/DO-214AB

9.44

10.40

1

20

8.5

104.17

14.4

SMCJ9.0A/SMCJ9.0CA

SMC/DO-214AB

10.00

11.10

1

10

9.0

97.40

15.4

SMCJ10A/SMCJ10CA

SMC/DO-214AB

11.10

12.30

1

5

10.0

88.24

17.0

SMCJ11A/SMCJ11CA

SMC/DO-214AB

12.20

13.50

1

1

11.0

82.42

18.2

SMCJ12A/SMCJ12CA

SMC/DO-214AB

13.30

14.70

1

1

12.0

75.38

19.9

SMCJ13A/SMCJ13CA

SMC/DO-214AB

14.40

15.90

1

1

13.0

69.77

21.5

SMCJ14A/SMCJ14CA

SMC/DO-214AB

15.60

17.20

1

1

14.20

64.66

23.2

SMCJ15A/SMCJ15CA

SMC/DO-214AB

16.70

18.50

1

1

15.0

61.48

24.4

SMCJ16A/SMCJ16CA

SMC/DO-214AB

17.80

19.70

1

1

16.0

57.69

26.0

SMCJ17A/SMCJ17CA

SMC/DO-214AB

18.90

20.90

1

1

17.0

54.35

27.6

SMCJ18A/SMCJ18CA

SMC/DO-214AB

20.00

22.10

1

1

18.0

51.37

29.2

SMCJ19A/SMCJ19CA

SMC/DO-214AB

21.10

23.30

1

1

19.0

48.73

30.8

SMCJ20A/SMCJ20CA

SMC/DO-214AB

22.20

24.50

1

1

20.0

46.30

32.4

SMCJ22A/SMCJ22CA

SMC/DO-214AB

24.40

26.90

1

1

22.0

42.25

35.5

SMCJ24A/SMCJ24CA

SMC/DO-214AB

26.70

29.50

1

1

24.0

38.56

38.9

SMCJ26A/SMCJ26CA

SMC/DO-214AB

28.90

31.90

1

1

26.0

35.63

42.1

SMCJ28A/SMCJ28CA

SMC/DO-214AB

31.10

34.40

1

1

28.0

33.04

45.4

SMCJ30A/SMCJ30CA

SMC/DO-214AB

33.30

36.80

1

1

30.0

30.99

48.4

SMCJ33A/SMCJ33CA

SMC/DO-214AB

36.70

40.60

1

1

33.0

28.14

53.3

SMCJ36A/SMCJ36CA

SMC/DO-214AB

40.00

44.20

1

1

36.0

25.82

58.1

SMCJ40A/SMCJ40CA

SMC/DO-214AB

44.40

49.10

1

1

40.0

23.26

64.5

SMCJ43A/SMCJ43CA

SMC/DO-214AB

47.80

52.80

1

1

43.0

21.61

69.4

SMCJ45A/SMCJ45CA

SMC/DO-214AB

50.00

55.30

1

1

45.0

20.63

72.7

SMCJ48A/SMCJ48CA

SMC/DO-214AB

53.30

58.90

1

1

48.0

19.38

77.4

SMCJ51A/SMCJ51CA

SMC/DO-214AB

56.70

62.70

1

1

51.0

18.20

82.4

SMCJ54A/SMCJ54CA

SMC/DO-214AB

60.00

66.30

1

1

54.0

17.22

87.1

SMCJ58A/SMCJ58CA

SMC/DO-214AB

64.40

71.20

1

1

58.0

16.03

93.6

SMCJ60A/SMCJ60CA

SMC/DO-214AB

66.70

73.70

1

1

60.0

15.50

96.8

SMCJ64A/SMCJ64CA

SMC/DO-214AB

71.10

78.60

1

1

64.0

14.56

103.0

SMCJ70A/SMCJ70CA

SMC/DO-214AB

77.80

86.00

1

1

70.0

13.27

113.0

SMCJ75A/SMCJ75CA

SMC/DO-214AB

83.30

92.10

1

1

75.0

12.40

121.0

SMCJ78A/SMCJ78CA

SMC/DO-214AB

86.70

95.80

1

1

78.0

11.90

126.0

SMCJ80A/SMCJ80CA

SMC/DO-214AB

88.80

97.60

1

1

80.0

11.57

129.6

SMCJ85A/SMCJ85CA

SMC/DO-214AB

94.40

104.00

1

1

85.0

10.95

137.0

SMCJ90A/SMCJ90CA

SMC/DO-214AB

100.00

111.00

1

1

90.0

10.27

146.0

SMCJ100A/SMCJ100CA

SMC/DO-214AB

111.00

123.00

1

1

100.0

9.26

162.00

SMCJ110A/SMCJ110CA

SMC/DO-214AB

122.00

135.00

1

1

110.0

8.47

177.0

SMCJ120A/SMCJ120CA

SMC/DO-214AB

133.00

147.00

1

1

120.0

7.77

193.0

SMCJ130A/SMCJ130CA

SMC/DO-214AB

144.00

159.00

1

1

130.0

7.18

209.0

SMCJ140A/SMCJ140CA

SMC/DO-214AB

155.00

171.00

1

1

140.0

6.61

226.8

SMCJ150A/SMCJ150CA

SMC/DO-214AB

167.00

185.00

1

1

150.0

6.17

243.0

SMCJ160A/SMCJ160CA

SMC/DO-214AB

178.00

197.00

1

1

160.0

5.79

259.0

SMCJ170A/SMCJ170CA

SMC/DO-214AB

189.00

209.00

1

1

170.0

5.45

275.0

SMCJ180A/SMCJ180CA

SMC/DO-214AB

200.00

220.00

1

1

180.0

5.14

291.6

SMCJ190A/SMCJ190CA

SMC/DO-214AB

211.00

232.00

1

1

190.0

4.87

307.8

SMCJ200A/SMCJ200CA

SMC/DO-214AB

224.00

247.00

1

1

200.0

4.60

324.0

SMCJ220A/SMCJ220CA

SMC/DO-214AB

246.00

272.00

1

1

220.0

4.20

356.0

SMCJ250A/SMCJ250CA

SMC/DO-214AB

279.00

309.00

1

1

250.0

3.70

405.0

SMCJ300A/SMCJ300CA

SMC/DO-214AB

335.00

371.00

1

1

300.0

3.10

486.0

SMCJ350A/SMCJ350CA

SMC/DO-214AB

391.00

432.00

1

1

350.0

2.60

567.0

SMCJ400A/SMCJ400CA

SMC/DO-214AB

447.00

494.00

1

1

400.0

2.30

648.0

SMCJ440A/SMCJ440CA

SMC/DO-214AB

492.00

543.00

1

1

440.0

2.10

713.0
