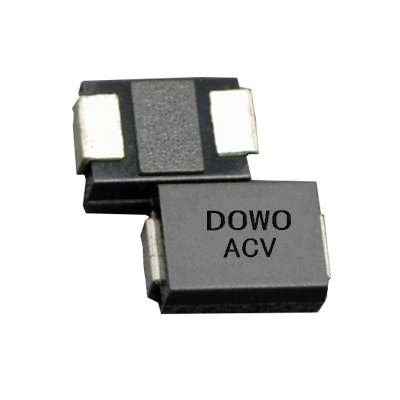

SMB10J Series

Encapsulation: SMB/DO-214AA
Ppp: 1000W
Vrwm: 5.0 V-85.0 V
Ipp: 7.3 A-108.7 A
Response Time: <1.0PS

Product Details

• Glass passivated chip

• 1000 W peak pulse power capability with a 10/1000 μs waveform, repetitive rate (duty cycle):0.01 %

• Uni and Bidirectional unit
• Low leakage
• Uni-directional unit
• Excellent clamping capability
• Very fast response time
• RoHS compliant

Part Number Picture Encapsulation VBR.MIN(V) VBR.MAX(V) IT(mA) IR(μA) VRWM(V) IPP(A) VC(V) Download

SMB10J5.0A/SMB10J5.0CA

SMB/DO-214AA

6.40

7.00

10

800

5.0

108.70

9.2

SMB10J6.0A/SMB10J6.0CA

SMB/DO-214AA

6.67

7.37

10

800

6.0

97.09

10.3

SMB10J6.5A/SMB10J6.5CA

SMB/DO-214AA

7.22

7.98

10

500

6.5

89.29

11.2

SMB10J7.0A/SMB10J7.0CA

SMB/DO-214AA

7.78

8.60

10

200

7.0

83.33

12.0

SMB10J7.5A/SMB10J7.5CA

SMB/DO-214AA

8.33

9.21

1

100

7.5

77.52

12.9

SMB10J8.0A/SMB10J8.0CA

SMB/DO-214AA

8.89

9.83

1

50

8.0

73.53

13.6

SMB10J8.5A/SMB10J8.5CA

SMB/DO-214AA

9.44

10.40

1

10

8.5

69.44

14.4

SMB10J9.0A/SMB10J9.0CA

SMB/DO-214AA

10.00

11.10

1

5.0

9.0

64.94

15.4

SMB10J10A/SMB10J10CA

SMB/DO-214AA

11.10

12.30

1

5.0

10.0

58.82

17.0

SMB10J11A/SMB10J11CA

SMB/DO-214AA

12.20

13.50

1

5.0

11.0

54.95

18.2

SMB10J12A/SMB10J12CA

SMB/DO-214AA

13.30

14.70

1

5.0

12.0

50.25

19.9

SMB10J13A/SMB10J13CA

SMB/DO-214AA

14.40

15.90

1

1.0

13.0

46.51

21.5

SMB10J14A/SMB10J14CA

SMB/DO-214AA

15.60

17.20

1

1.0

14.0

43.10

23.2

SMB10J15A/SMB10J15CA

SMB/DO-214AA

16.70

18.50

1

1.0

15.0

40.98

24.4

SMB10J16A/SMB10J16CA

SMB/DO-214AA

17.80

19.70

1

1.0

16.0

38.46

26.0

SMB10J17A/SMB10J17CA

SMB/DO-214AA

18.90

20.90

1

1.0

17.0

36.23

27.6

SMB10J18A/SMB10J18CA

SMB/DO-214AA

20.00

22.10

1

1.0

18.0

34.25

29.2

SMB10J19A/SMB10J19CA

SMB/DO-214AA

21.10

23.30

1

1.0

19.0

32.49

30.8

SMB10J20A/SMB10J20CA

SMB/DO-214AA

22.20

24.50

1

1.0

20.0

30.86

32.4

SMB10J22A/SMB10J22CA

SMB/DO-214AA

24.40

26.90

1

1.0

22.0

28.17

35.5

SMB10J24A/SMB10J24CA

SMB/DO-214AA

26.70

29.50

1

1.0

24.0

25.71

38.9

SMB10J26A/SMB10J26CA

SMB/DO-214AA

28.90

31.90

1

1.0

26.0

23.75

42.1

SMB10J28A/SMB10J28CA

SMB/DO-214AA

31.10

34.40

1

1.0

28.0

22.03

45.4

SMB10J30A/SMB10J30CA

SMB/DO-214AA

33.30

36.80

1

1.0

30.0

20.66

48.4

SMB10J33A/SMB10J33CA

SMB/DO-214AA

36.70

40.60

1

1.0

33.0

18.76

53.3

SMB10J36A/SMB10J36CA

SMB/DO-214AA

40.00

44.20

1

1.0

36.0

17.21

58.1

SMB10J40A/SMB10J40CA

SMB/DO-214AA

44.40

49.10

1

1.0

40.0

15.50

64.5

SMB10J43A/SMB10J43CA

SMB/DO-214AA

47.80

52.80

1

1.0

43.0

14.41

69.4

SMB10J45A/SMB10J45CA

SMB/DO-214AA

50.00

55.30

1

1.0

45.0

13.76

72.7

SMB10J48A/SMB10J48CA

SMB/DO-214AA

53.30

58.90

1

1.0

48.0

12.92

77.4

SMB10J51A/SMB10J51CA

SMB/DO-214AA

56.70

62.70

1

1.0

51.0

12.14

82.4

SMB10J54A/SMB10J54CA

SMB/DO-214AA

60.00

66.30

1

1.0

54.0

11.48

87.1

SMB10J58A/SMB10J58CA

SMB/DO-214AA

64.40

71.20

1

1.0

58.0

10.68

93.6

SMB10J60A/SMB10J60CA

SMB/DO-214AA

66.70

73.70

1

1.0

60.0

10.33

96.8

SMB10J64A/SMB10J64CA

SMB/DO-214AA

71.10

78.60

1

1.0

64.0

9.71

103.0

SMB10J70A/SMB10J70CA

SMB/DO-214AA

77.80

86.00

1

1.0

70.0

8.85

113.0

SMB10J75A/SMB10J75CA

SMB/DO-214AA

83.30

92.10

1

1.0

75.0

8.26

121.0

SMB10J78A/SMB10J78CA

SMB/DO-214AA

86.70

95.80

1

1.0

78.0

7.94

126.0

SMB10J80A/SMB10J80CA

SMB/DO-214AA

88.80

97.60

1

1.0

80.0

7.72

129.6

SMB10J85A/SMB10J85CA

SMB/DO-214AA

94.40

104.00

1

1.0

85.0

7.30

137.0
