• Glass passivated chip
• 600 W peak pulse power capability with a 10/1000 μs waveform, repetitive rate (duty cycle):0.01 %
• Low leakage
• Uni and Bidirectional unit
• Excellent clamping capability
• Very fast response time
• RoHS compliant

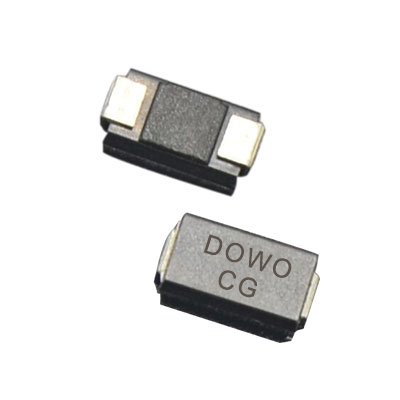

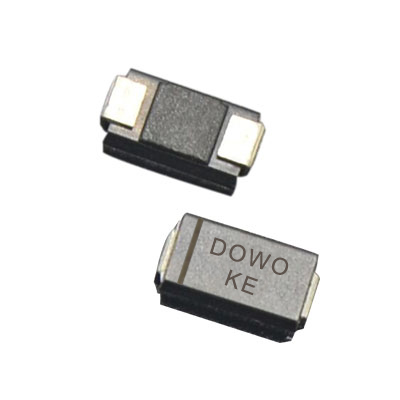

| Part Number | Picture | Encapsulation | VBR.MIN(V) | VBR.MAX(V) | IT(mA) | IR(μA) | VRWM(V) | IPP(A) | VC(V) | Download |
|---|---|---|---|---|---|---|---|---|---|---|
|
SMA/DO-214AC |
6.40 |
7.00 |
10 |
800 |
5.0 |
65.2 |
9.2 |
|
|
|
SMA/DO-214AC |
6.67 |
7.37 |
10 |
800 |
6.0 |
58.3 |
10.3 |
|
|
|
SMA/DO-214AC |
7.22 |
7.98 |
10 |
500 |
6.5 |
53.6 |
11.2 |
|
|
|
SMA/DO-214AC |
7.78 |
8.60 |
10 |
200 |
7.0 |
50.0 |
12.0 |
|
|
|
SMA/DO-214AC |
8.33 |
9.21 |
1 |
100 |
7.5 |
46.5 |
12.9 |
|
|
|
SMA/DO-214AC |
8.89 |
9.83 |
1 |
50 |
8.0 |
44.1 |
13.6 |
|
|
|
SMA/DO-214AC |
9.44 |
10.40 |
1 |
10 |
8.5 |
41.7 |
14.4 |
|
|
|
SMA/DO-214AC |
10.00 |
11.10 |
1 |
5.0 |
9.0 |
39.0 |
15.4 |
|
|
|
SMA/DO-214AC |
11.10 |
12.30 |
1 |
1.0 |
10.0 |
35.3 |
17.0 |
|
|
|
SMA/DO-214AC |
12.20 |
13.50 |
1 |
1.0 |
11.0 |
33.0 |
18.2 |
|
|
|
SMA/DO-214AC |
13.30 |
14.70 |
1 |
1.0 |
12.0 |
30.2 |
19.9 |
|
|
|
SMA/DO-214AC |
14.40 |
15.90 |
1 |
1.0 |
13.0 |
27.9 |
21.5 |
|
|
|
SMA/DO-214AC |
15.60 |
17.20 |
1 |
1.0 |
14.0 |
25.9 |
23.2 |
|
|
|
SMA/DO-214AC |
16.70 |
18.50 |
1 |
1.0 |
15.0 |
24.6 |
24.4 |
|
|
|
SMA/DO-214AC |
17.80 |
19.70 |
1 |
1.0 |
16.0 |
23.1 |
26.0 |
|
|
|
SMA/DO-214AC |
18.90 |
20.90 |
1 |
1.0 |
17.0 |
21.7 |
27.6 |
|
|
|
SMA/DO-214AC |
20.00 |
22.10 |
1 |
1.0 |
18.0 |
20.5 |
29.2 |
|
|
|
SMA/DO-214AC |
21.10 |
23.30 |
1 |
1.0 |
19.0 |
19.5 |
30.8 |
|
|
|
SMA/DO-214AC |
22.20 |
24.50 |
1 |
1.0 |
20.0 |
18.5 |
32.4 |
|
|
|
SMA/DO-214AC |
24.40 |
26.90 |
1 |
1.0 |
22.0 |
16.9 |
35.5 |
|
|
|
SMA/DO-214AC |
26.70 |
29.50 |
1 |
1.0 |
24.0 |
15.4 |
38.9 |
|
|
|
SMA/DO-214AC |
28.90 |
31.90 |
1 |
1.0 |
26.0 |
14.3 |
42.1 |
|
|
|
SMA/DO-214AC |
31.10 |
34.40 |
1 |
1.0 |
28.0 |
13.2 |
45.4 |
|
|
|
SMA/DO-214AC |
33.30 |
36.80 |
1 |
1.0 |
30.0 |
12.4 |
48.4 |
|
|
|
SMA/DO-214AC |
36.70 |
40.60 |
1 |
1.0 |
33.0 |
11.3 |
53.3 |
|
|
|
SMA/DO-214AC |
40.00 |
44.20 |
1 |
1.0 |
36.0 |
10.3 |
58.1 |
|
|
|
SMA/DO-214AC |
44.40 |
49.10 |
1 |
1.0 |
40.0 |
9.30 |
64.5 |
|
|
|
SMA/DO-214AC |
47.80 |
52.80 |
1 |
1.0 |
43.0 |
8.65 |
69.4 |
|
|
|
SMA/DO-214AC |
50.00 |
55.30 |
1 |
1.0 |
45.0 |
8.25 |
72.7 |
|
|
|
SMA/DO-214AC |
53.30 |
58.90 |
1 |
1.0 |
48.0 |
7.75 |
77.4 |
|
|
|
SMA/DO-214AC |
56.70 |
62.70 |
1 |
1.0 |
51.0 |
7.28 |
82.4 |
|
|
|
SMA/DO-214AC |
60.00 |
66.30 |
1 |
1.0 |
54.0 |
6.89 |
87.1 |
|
|
|
SMA/DO-214AC |
64.40 |
71.20 |
1 |
1.0 |
58.0 |
6.41 |
93.6 |
|
