Location:Home>Products>TVS>TVS Diodes>P4SMA Series

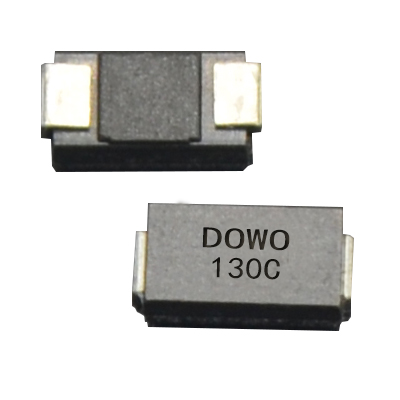

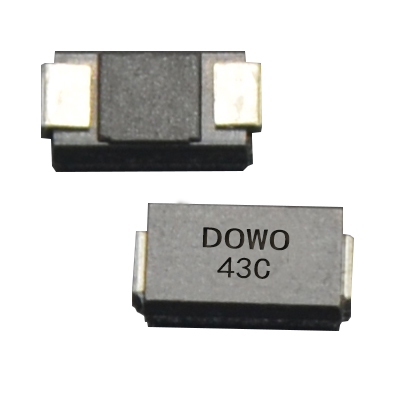

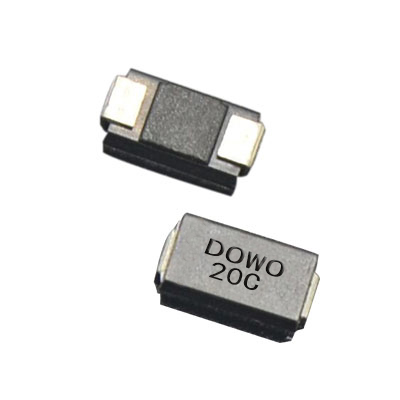

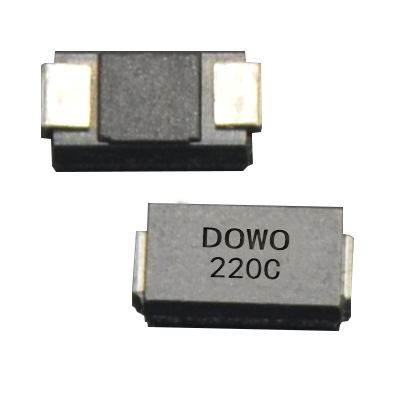

P4SMA Series

Encapsulation: SMA/DO-214AC
Ppp: 400W
Vrwm: 6.8 V-600.0 V
Ipp: 0.48 A-38.1 A
Response Time: <1.0PS

Product Details

• Glass passivated chip

• 400 W peak pulse power capability with a 10/1000 μs waveform, repetitive rate (duty cycle):0.01 %

• High reliability application and automotive grade AEC Q101 qualified
• Low leakage
• Uni and Bidirectional unit
• Excellent clamping capability
• Very fast response time
• RoHS compliant

Part Number Picture Encapsulation VBR.MIN(V) VBR.MAX(V) IT(mA) IR(μA) VRWM(V) IPP(A) VC(V) Download

P4SMA6.8A/P4SMA6.8CA

SMA/DO-214AC

6.46

7.14

10

1000

5.8

38.10

10.5

P4SMA7.5A/P4SMA7.5CA

SMA/DO-214AC

7.13

7.88

10

500

6.4

35.40

11.3

P4SMA8.2A/P4SMA8.2CA

SMA/DO-214AC

7.79

8.61

10

200

7.0

33.06

12.1

P4SMA9.1A/P4SMA9.1CA

SMA/DO-214AC

8.65

9.56

1

50

7.8

29.85

13.4

P4SMA10A/P4SMA10CA

SMA/DO-214AC

9.50

10.50

1

10

8.6

27.59

14.5

P4SMA11A/P4SMA11CA

SMA/DO-214AC

10.45

11.55

1

5

9.4

25.64

15.6

P4SMA12A/P4SMA12CA

SMA/DO-214AC

11.40

12.60

1

5

10.2

23.95

16.7

P4SMA13A/P4SMA13CA

SMA/DO-214AC

12.35

13.65

1

1

11.1

21.98

18.2

P4SMA15A/P4SMA15CA

SMA/DO-214AC

14.25

15.75

1

1

12.8

18.87

21.2

P4SMA16A/P4SMA16CA

SMA/DO-214AC

15.20

16.80

1

1

13.6

17.78

22.5

P4SMA18A/P4SMA18CA

SMA/DO-214AC

17.10

18.90

1

1

15.3

15.87

25.2

P4SMA20A/P4SMA20CA

SMA/DO-214AC

19.00

21.00

1

1

17.1

14.44

27.7

P4SMA22A/P4SMA22CA

SMA/DO-214AC

20.90

23.10

1

1

18.8

13.07

30.6

P4SMA24A/P4SMA24CA

SMA/DO-214AC

22.80

25.20

1

1

20.5

12.05

33.2

P4SMA27A/P4SMA27CA

SMA/DO-214AC

25.65

28.35

1

1

23.1

10.67

37.5

P4SMA30A/P4SMA30CA

SMA/DO-214AC

28.50

31.50

1

1

25.6

9.66

41.4

P4SMA33A/P4SMA33CA

SMA/DO-214AC

31.35

34.65

1

1

28.2

8.75

45.7

P4SMA36A/P4SMA36CA

SMA/DO-214AC

34.20

37.80

1

1

30.8

8.02

49.9

P4SMA39A/P4SMA39CA

SMA/DO-214AC

37.05

40.95

1

1

33.3

7.42

53.9

P4SMA43A/P4SMA43CA

SMA/DO-214AC

40.85

45.15

1

1

36.8

6.75

59.3

P4SMA47A/P4SMA47CA

SMA/DO-214AC

44.65

49.35

1

1

40.2

6.17

64.8

P4SMA51A/P4SMA51CA

SMA/DO-214AC

48.45

53.55

1

1

43.6

5.71

70.1

P4SMA56A/P4SMA56CA

SMA/DO-214AC

53.20

58.80

1

1

47.8

5.19

77.0

P4SMA62A/P4SMA62CA

SMA/DO-214AC

58.90

65.10

1

1

53.0

4.71

85.0

P4SMA68A/P4SMA68CA

SMA/DO-214AC

64.60

71.40

1

1

58.1

4.35

92.0

P4SMA75A/P4SMA75CA

SMA/DO-214AC

71.25

78.75

1

1

64.1

3.88

103.0

P4SMA82A/P4SMA82CA

SMA/DO-214AC

77.90

86.10

1

1

70.1

3.54

113.0

P4SMA91A/P4SMA91CA

SMA/DO-214AC

86.45

95.55

1

1

77.8

3.20

125.0

P4SMA100A/P4SMA100CA

SMA/DO-214AC

95.00

105.00

1

1

85.5

2.92

137.0

P4SMA110A/P4SMA110CA

SMA/DO-214AC

104.50

115.50

1

1

94.0

2.63

152.0

P4SMA120A/P4SMA120CA

SMA/DO-214AC

114.00

126.00

1

1

102.0

2.42

165.0

P4SMA130A/P4SMA130CA

SMA/DO-214AC

123.50

136.50

1

1

111.0

2.23

179.0

P4SMA150A/P4SMA150CA

SMA/DO-214AC

142.50

157.50

1

1

128.0

1.93

207.0

P4SMA160A/P4SMA160CA

SMA/DO-214AC

152.00

168.00

1

1

136.0

1.83

219.0

P4SMA170A/P4SMA170CA

SMA/DO-214AC

161.50

178.50

1

1

145.0

1.71

234.0

P4SMA180A/P4SMA180CA

SMA/DO-214AC

171.00

189.00

1

1

154.0

1.63

246.0

P4SMA200A/P4SMA200CA

SMA/DO-214AC

190.00

210.00

1

1

171.0

1.46

274.0

P4SMA220A/P4SMA220CA

SMA/DO-214AC

209.00

231.00

1

1

185.0

1.22

328.0

P4SMA250A/P4SMA250CA

SMA/DO-214AC

237.50

262.50

1

1

214.0

1.16

344.0

P4SMA300A/P4SMA300CA

SMA/DO-214AC

285.00

315.00

1

1

256.0

0.97

414.0

P4SMA350A/P4SMA350CA

SMA/DO-214AC

332.50

367.50

1

1

299.3

0.83

482.0

P4SMA380A/P4SMA380CA

SMA/DO-214AC

361.00

399.00

1

1

324.9

0.76

524.4

P4SMA400A/P4SMA400CA

SMA/DO-214AC

380.00

420.00

1

1

342.0

0.72

552.0

P4SMA440A/P4SMA440CA

SMA/DO-214AC

418.00

462.00

1

1

376.2

0.66

607.2

P4SMA500A/P4SMA500CA

SMA/DO-214AC

475.00

525.00

1

1

427.5

0.58

690.0

P4SMA520A/P4SMA520CA

SMA/DO-214AC

494.00

546.00

1

1

444.6

0.56

717.6

P4SMA550A/P4SMA550CA

SMA/DO-214AC

522.50

577.50

1

1

470.3

0.53

759.0

P4SMA600A/P4SMA600CA

SMA/DO-214AC

570.00

630.00

1

1

513.0

0.48

828.0
