• Glass passivated chip
• 3000 W peak pulse power capability with a 10/1000 μs waveform, repetitive rate (duty
cycle):0.01 %
• High reliability application and automotive grade AEC Q101 qualified
• Low leakage
• Uni and Bidirectional unit
• Excellent clamping capability
• Very fast response time
• RoHS compliant
| Part Number | Picture | Encapsulation | VBR.MIN(V) | VBR.MAX(V) | IT(mA) | IR(μA) | VRWM(V) | IPP(A) | VC(V) | Download |
|---|---|---|---|---|---|---|---|---|---|---|
|

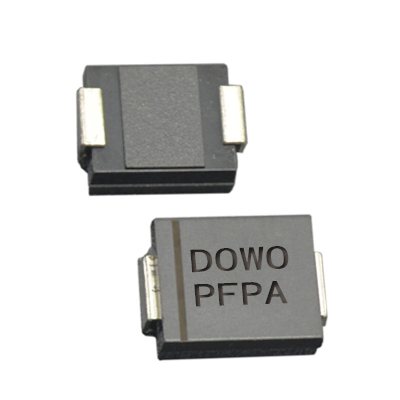

SMC/DO-214AB |
11.10 |
12.30 |
1 |
15 |
10.0 |
176.47 |
17.0 |
|
|
|

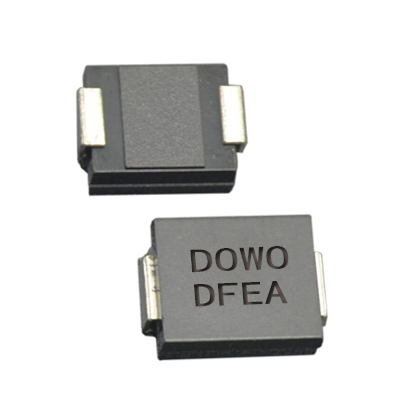

SMC/DO-214AB |
12.20 |
13.50 |
1 |
2 |
11.0 |
164.84 |
18.2 |
|
|
|
SMC/DO-214AB |
13.30 |
14.70 |
1 |
2 |
12.0 |
150.75 |
19.9 |
|
|
|
SMC/DO-214AB |
14.40 |
15.90 |
1 |
2 |
13.0 |
139.53 |
21.5 |
|
|
|
SMC/DO-214AB |
15.60 |
17.20 |
1 |
2 |
14.0 |
129.31 |
23.2 |
|
|
|
SMC/DO-214AB |
16.70 |
18.50 |
1 |
2 |
15.0 |
122.95 |
24.4 |
|
|
|
SMC/DO-214AB |
17.80 |
19.70 |
1 |
2 |
16.0 |
115.38 |
26.0 |
|
|
|
SMC/DO-214AB |
18.90 |
20.90 |
1 |
2 |
17.0 |
108.70 |
27.6 |
|
|
|
SMC/DO-214AB |
20.00 |
22.10 |
1 |
2 |
18.0 |
102.74 |
29.2 |
|
|
|
SMC/DO-214AB |
21.10 |
23.30 |
1 |
2 |
19.0 |
97.47 |
30.8 |
|
|
|
SMC/DO-214AB |
22.20 |
24.50 |
1 |
2 |
20.0 |
92.59 |
32.4 |
|
|
|
SMC/DO-214AB |
24.40 |
26.90 |
1 |
2 |
22.0 |
84.51 |
35.5 |
|
|
|
SMC/DO-214AB |
26.70 |
29.50 |
1 |
2 |
24.0 |
77.12 |
38.9 |
|
|
|
SMC/DO-214AB |
31.10 |
34.40 |
1 |
2 |
28.0 |
66.08 |
45.4 |
|
|
|
SMC/DO-214AB |
33.30 |
36.80 |
1 |
2 |
30.0 |
61.98 |
48.4 |
|
|
|
SMC/DO-214AB |
36.70 |
40.60 |
1 |
2 |
33.0 |
56.29 |
53.3 |
|
|
|
SMC/DO-214AB |
40.00 |
44.20 |
1 |
2 |
36.0 |
51.64 |
58.1 |
|
|
|
SMC/DO-214AB |
44.40 |
49.10 |
1 |
2 |
40.0 |
46.51 |
64.5 |
|
|
|
SMC/DO-214AB |
47.80 |
52.80 |
1 |
2 |
43.0 |
43.23 |
69.4 |
|
|
|
SMC/DO-214AB |
28.90 |
31.90 |
1 |
2 |
26.0 |
71.26 |
42.1 |
|
