• Glass passivated chip
• 400 W peak pulse power capability with a 10/1000 μs waveform, repetitive rate (duty
cycle):0.01 %
• High reliability application and automotive grade AEC Q101 qualified
• Low leakage
• Uni and Bidirectional unit
• Excellent clamping capability
• Very fast response time
• RoHS compliant

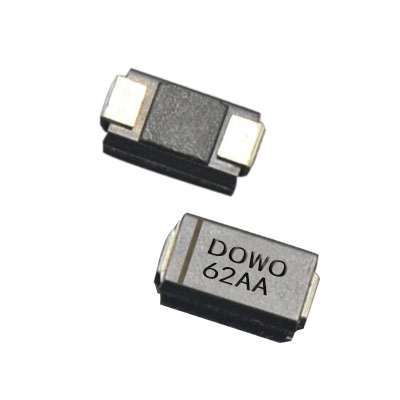

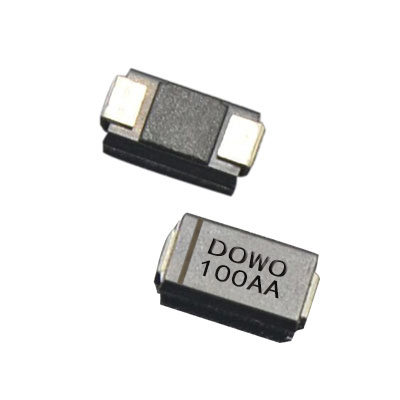

| Part Number | Picture | Encapsulation | VBR.MIN(V) | VBR.MAX(V) | IT(mA) | IR(μA) | VRWM(V) | IPP(A) | VC(V) | Download |
|---|---|---|---|---|---|---|---|---|---|---|
|
SMA/DO-214AC |
11.40 |
12.60 |
1 |
5 |
10.2 |
23.95 |
16.7 |
|
|
|
SMA/DO-214AC |
12.35 |
13.65 |
1 |
1 |
11.1 |
21.98 |
18.2 |
|
|
|
SMA/DO-214AC |
14.25 |
15.75 |
1 |
1 |
12.8 |
18.87 |
21.2 |
|
|
|
SMA/DO-214AC |
15.20 |
16.80 |
1 |
1 |
13.6 |
17.78 |
22.5 |
|
|
|
SMA/DO-214AC |
17.10 |
18.90 |
1 |
1 |
15.3 |
15.87 |
25.2 |
|
|
|
SMA/DO-214AC |
19.00 |
21.00 |
1 |
1 |
17.1 |
14.44 |
27.7 |
|
|
|
SMA/DO-214AC |
20.90 |
23.10 |
1 |
1 |
18.8 |
13.07 |
30.6 |
|
|
|
SMA/DO-214AC |
22.80 |
25.20 |
1 |
1 |
20.5 |
12.05 |
33.2 |
|
|
|
SMA/DO-214AC |
25.65 |
28.35 |
1 |
1 |
23.1 |
10.67 |
37.5 |
|
|
|
SMA/DO-214AC |
28.50 |
31.50 |
1 |
1 |
25.6 |
9.66 |
41.4 |
|
|
|
SMA/DO-214AC |
31.35 |
34.65 |
1 |
1 |
28.2 |
8.75 |
45.7 |
|
|
|
SMA/DO-214AC |
34.20 |
37.80 |
1 |
1 |
30.8 |
8.02 |
49.9 |
|
|
|
SMA/DO-214AC |
37.05 |
40.95 |
1 |
1 |
33.3 |
7.42 |
53.9 |
|
|
|
SMA/DO-214AC |
40.85 |
45.15 |
1 |
1 |
36.8 |
6.75 |
59.3 |
|
|
|
SMA/DO-214AC |
44.65 |
49.35 |
1 |
1 |
40.2 |
6.17 |
64.8 |
|
|
|
SMA/DO-214AC |
48.45 |
53.55 |
1 |
1 |
43.6 |
5.71 |
70.1 |
|
|
|
SMA/DO-214AC |
53.20 |
58.80 |
1 |
1 |
47.8 |
5.19 |
77.0 |
|
|
|
SMA/DO-214AC |
58.90 |
65.10 |
1 |
1 |
53.0 |
4.71 |
85.0 |
|
|
|
SMA/DO-214AC |
64.60 |
71.40 |
1 |
1 |
58.1 |
4.35 |
92.0 |
|
|
|
SMA/DO-214AC |
71.25 |
78.75 |
1 |
1 |
64.1 |
3.88 |
103.0 |
|
|
|
SMA/DO-214AC |
77.90 |
86.10 |
1 |
1 |
70.1 |
3.54 |
113.0 |
|
|
|
SMA/DO-214AC |
86.45 |
95.55 |
1 |
1 |
77.8 |
3.20 |
125.0 |
|
|
|
SMA/DO-214AC |
95.00 |
105.00 |
1 |
1 |
85.5 |
2.92 |
137.0 |
|
