• Optimized glass passivated chip
• 6600 W peak pulse power capability with a 10/1000 us waveform, repetitive rate (duty cycle):0.01%
• Meet ISO7637-2 5a surge specification
• AEC-Q101 qualified
• Low leakage current
• Bidirectional Unit
• Excellent clamping capability
• Very fast response time
• RoHS compliant
| Part Number | Picture | Encapsulation | VBR.MIN(V) | VBR.MAX(V) | IT(mA) | IR(μA) | VRWM(V) | IPP(A) | VC(V) | Download |
|---|---|---|---|---|---|---|---|---|---|---|
|

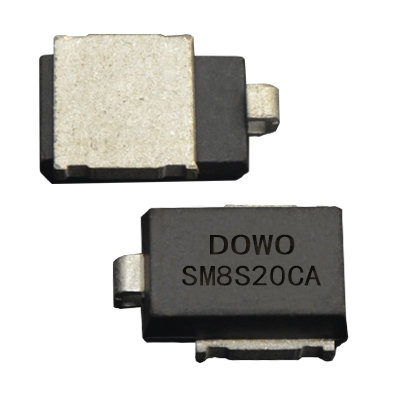

DO-218AB |
15.60 |
17.20 |
5 |
10 |
14 |
284.00 |
23.2 |
|
|
|
DO-218AB |
16.70 |
18.50 |
5 |
10 |
15 |
270.00 |
24.4 |
|
|
|
DO-218AB |
17.80 |
19.70 |
5 |
10 |
16 |
254.00 |
26.0 |
|
|
|
DO-218AB |
18.90 |
20.90 |
5 |
10 |
17 |
239.00 |
27.6 |
|
|
|
DO-218AB |
20.00 |
22.10 |
5 |
10 |
18 |
226.00 |
29.2 |
|
|
|
DO-218AB |
22.20 |
24.50 |
5 |
10 |
20 |
204.00 |
32.4 |
|
|
|
DO-218AB |
24.40 |
26.90 |
5 |
10 |
22 |
186.00 |
35.5 |
|
|
|
DO-218AB |
26.70 |
29.50 |
5 |
10 |
24 |
170.00 |
38.9 |
|
|
|
DO-218AB |
28.90 |
31.90 |
5 |
10 |
26 |
157.00 |
42.1 |
|
|
|
DO-218AB |
31.10 |
34.40 |
5 |
10 |
28 |
145.00 |
45.4 |
|
|
|
DO-218AB |
33.30 |
36.80 |
5 |
10 |
30 |
136.00 |
48.4 |
|
|
|
DO-218AB |
36.70 |
40.60 |
5 |
10 |
33 |
124.00 |
53.3 |
|
|
|
DO-218AB |
40.00 |
44.20 |
5 |
10 |
36 |
114.00 |
58.1 |
|
|
|
DO-218AB |
44.40 |
49.10 |
5 |
10 |
40 |
102.00 |
64.5 |
|
|
|
DO-218AB |
47.80 |
52.80 |
5 |
10 |
43 |
95.10 |
69.4 |
|
